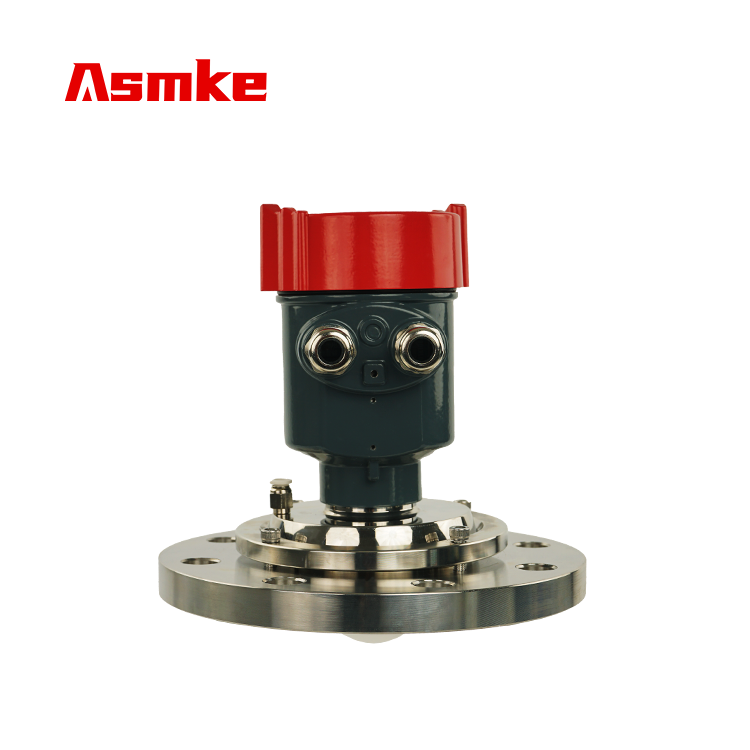

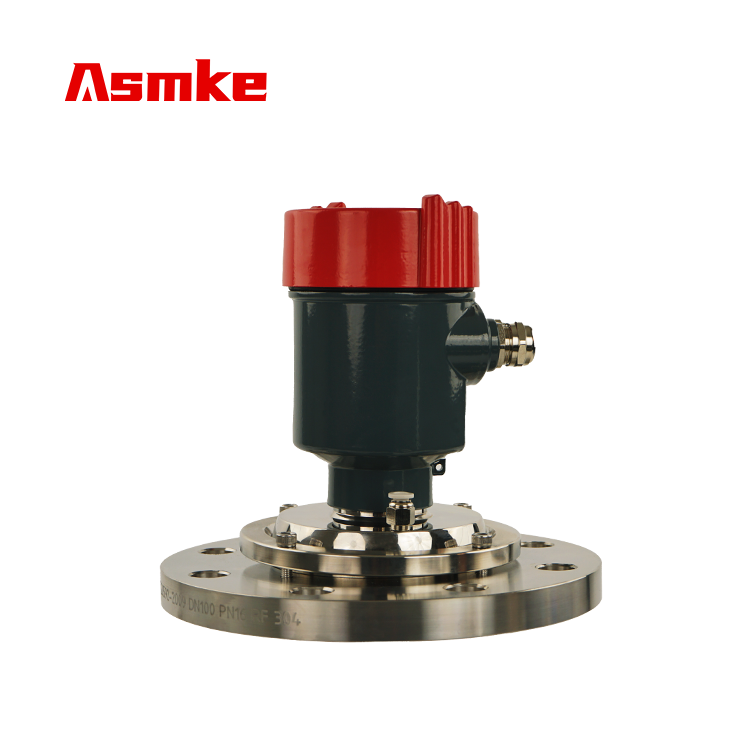

Flange Type FMCW Radar Level Meter
product name

Asmke Radar Level Gauge

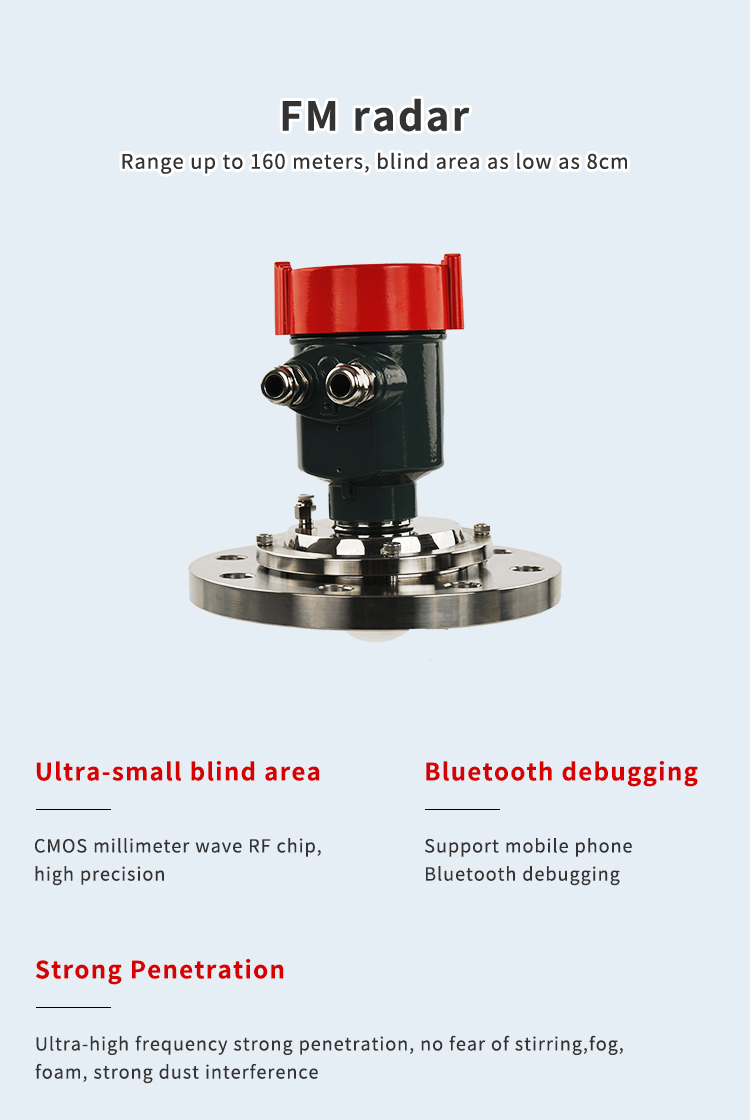

Description: The radar level meter is a radar product that uses the frequency modulated continuous wave (FMCW) principle. It can be widely used to measure the distance, material height, volume, weight and open channel flow of liquids, slurries and viscous materials. It can also be used to measure solid media such as powders, particles and blocks. Even in dusty and stirring applications, it can also measure stably. It supports two-wire and four-wire applications.

Basic Parameters

Transmitting frequency76GHz 81GHz
Measurement range15m:35m;85m:120m
Measurement accuracy±2mm or customized
Measurement intervalFastest 100ms

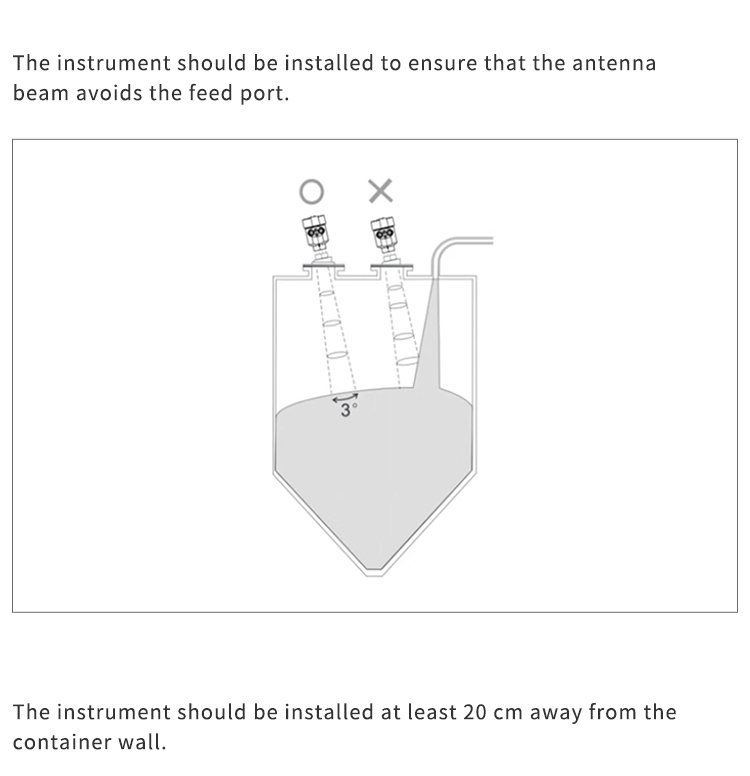

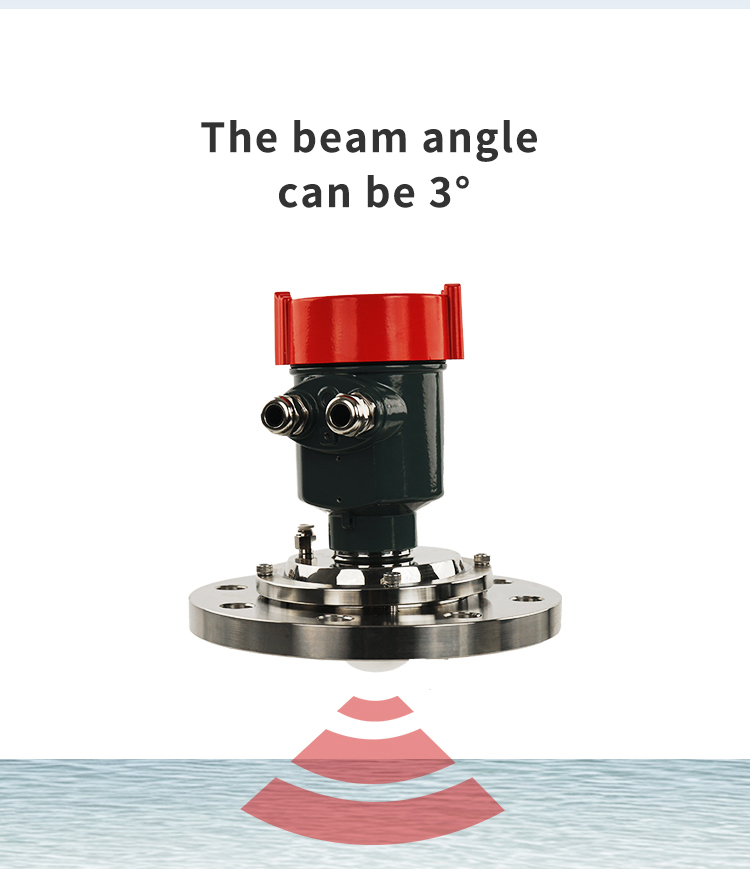

Beam angle3°/8°/20°
Used dielectric constant range≥2
Power supply range18~28VDC, 220VAC
Communication methodMODBUS bus:HART
Signal output4~20mA or RS-485
Fault output3.6mA, 22mA, hold

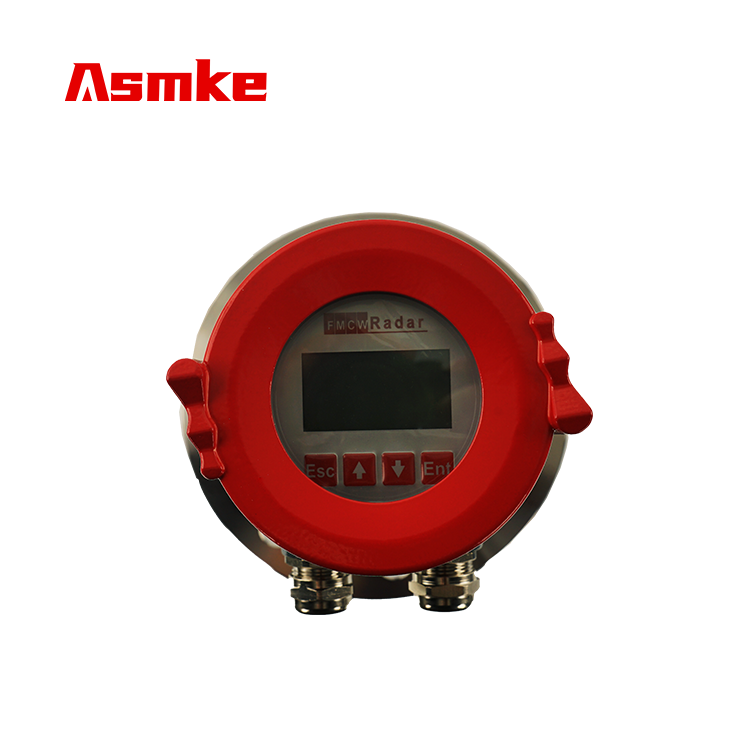

On-site operation/programming128x64 dot matrix display/4 buttons: configurable host computer setting software
Process temperature/humidityT0:-40~85℃/humidity≤95%RH T1:-40~200℃ T2:-40~400℃ T3:-40~800℃
Casing materialAluminum alloy, stainless steel
Process connection typePipe thread/universal flange/anti-corrosion flange/sanitary chuck/quartz isolation flange
Process pressure-0.1~2MPa
Cable entryM20*1.5;1/2NPT
Recommended cableAWG18 or 0.75mm2
Protection levelIP67/IP66
Explosion-proof levelExia IlcT6 Ga: Exdb CT6 Gb: Extb IllC T80℃Db

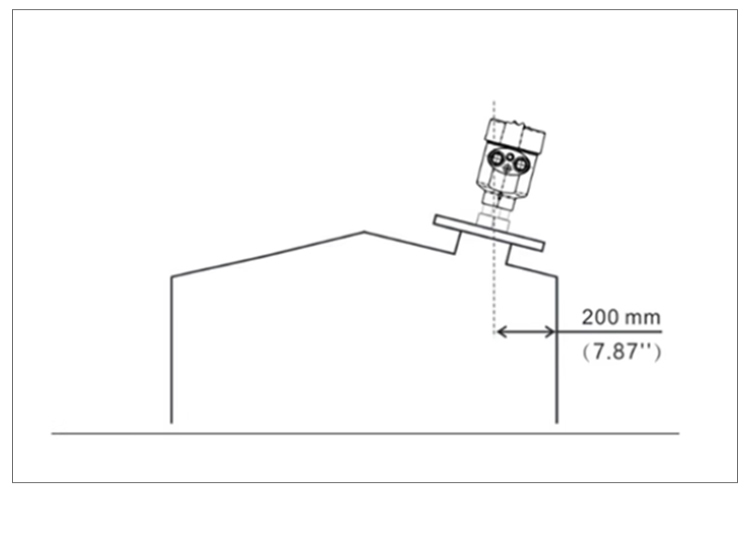

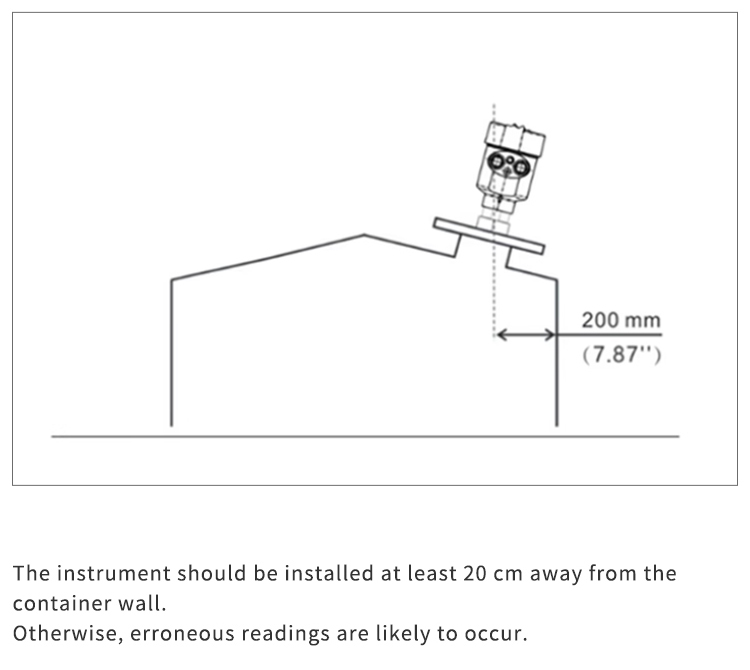

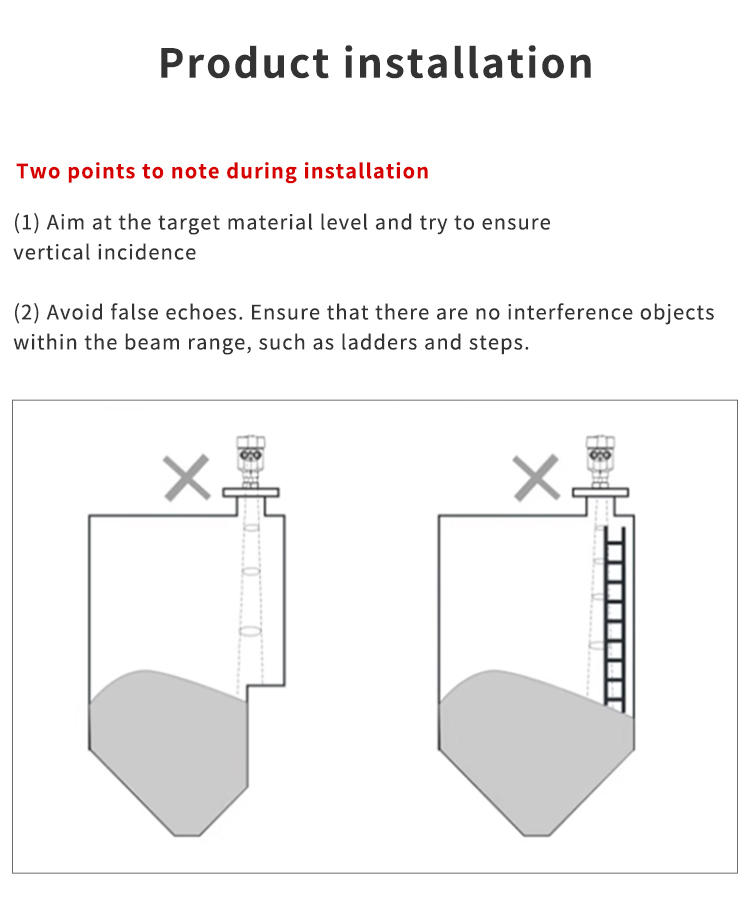

Installation methodThread, flange, bracket, chuck or gantry, etc.

Product Description
