Basic Parameters
| Applicable Media | Liquids, Solids, Powder Materials, Granular Materials |

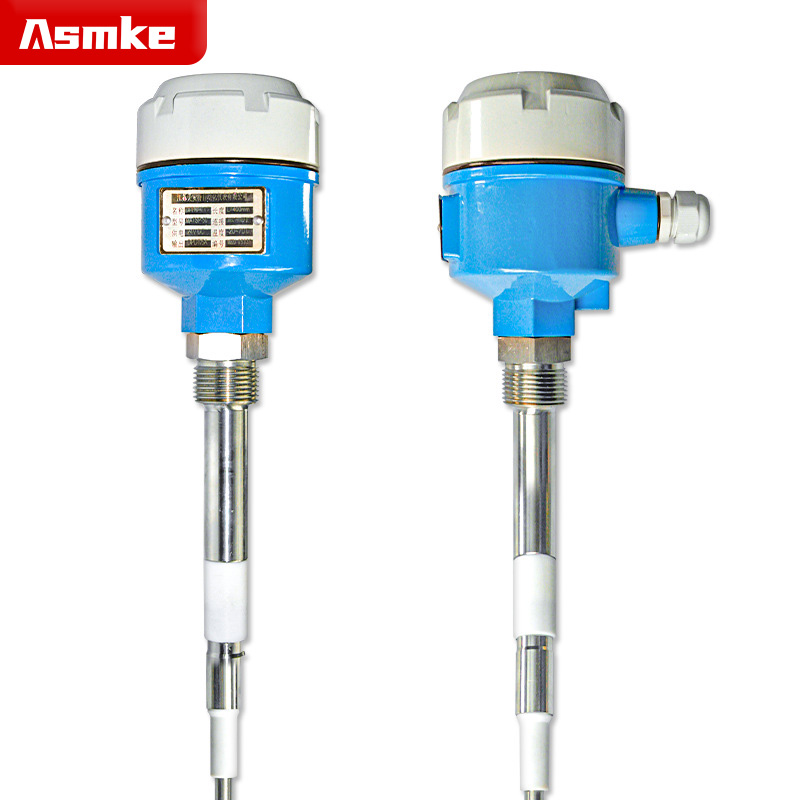

| Model | MAT RF Admittance Level Switch |
| Output Signa | 4-20 (mA) |
| Measurement Accuracy | 0.5 |
| Measuring Range | 0-30m |
| Medium Temperature | -100℃ ~ 850℃ |
| Output Rating | 20VAC / 5A |
| Output Signal | Relay |
| Medium Pressure | Vacuum ~ 32MPa |
| Resolution | 1mm |
| Power Supply | 20VAC, 24VDC |
| Electrical Connection | 3/4" NPT |
| Explosion Proof Grade | Exd[ia] ia IIC T4 |
| Material | Stainless Steel / PTFE / Ceramic |
| Specifications | Threaded mounting, 304 stainless steel wetted parts within 300mm length, threaded mounting, 316 stainless steel wetted parts... |
Product Description
RF Admittance Level Switch Type Selection Parameter Table
| Parameter | Parameter Description |
|---|---|
| Wetted Material | □ Carbon Steel □ 304 Stainless Steel □ 316 Stainless Steel□ PP Material □ Others |
| Medium Temperature | ______ ℃ |
| Measuring Distance | ______ mm |
| Installation Method | □ Threaded: ______Flange: □ DN15 □ DN20 □ DN25□ Others |
| Measured Medium | ______ |
| Remarks (Other Requirements) | ______ |
