Basic Parameter
| Technical Parameters | |
| Power Supply | outer covering (4~20)mA with display power supply range: (12~32)V outer covering (4~20)mA without display power supply range: (9~32)V |
| Output | (4~20)mA (1~5)V (0~10)V (0~5)V |
| Accuracy | 0.2 level, 0.25 level, 0.5 Optional levels |
| Range | -0.1…0~60MPa (range cannot be less than 10kPa) |
| Pressure Type | Gauge pressure, absolute pressure, sealed pressure |
| Compensated Temperature | (-10~70)℃ |
| Operating Temperature | (-20~85)℃ |
| Medium Temperature | (-20~85)℃ |
| Storage Temperature | (-40~85)℃ |
| Zero Output Temperature Drift | ±0.3%FS/10℃ |
| Full Scale Output Temperature Drift | ±0.3%FS/10℃ |
| Overload Pressure | (0.035~10)MPa(150%FS)(10~60)MPa(125%FS) |
| Long-term Stability | ±0.2%FS/year |
| Response Time | Current, voltage output type pressure ≤10ms (rise to 90%FS) |
| Insulation Resistance | 20MΩ/250VDC |

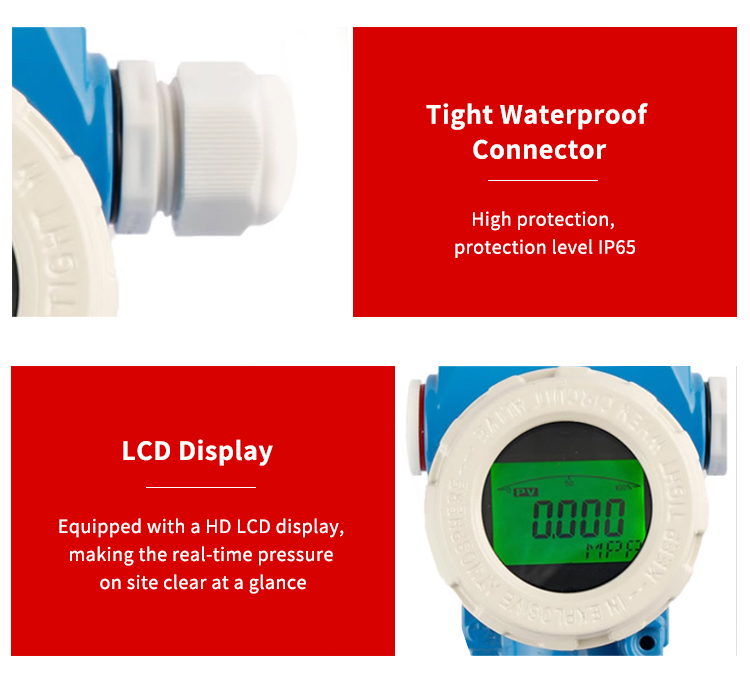

| Protection Level | IP65 |
| Load Resistance | outer covering (4~20)mA with display: (U-13)/0.02A, U is the power supply voltage outer covering (4~20)mA Without display: (U-9)/0.02A, U is the supply voltage V output: ≥5kΩ |
