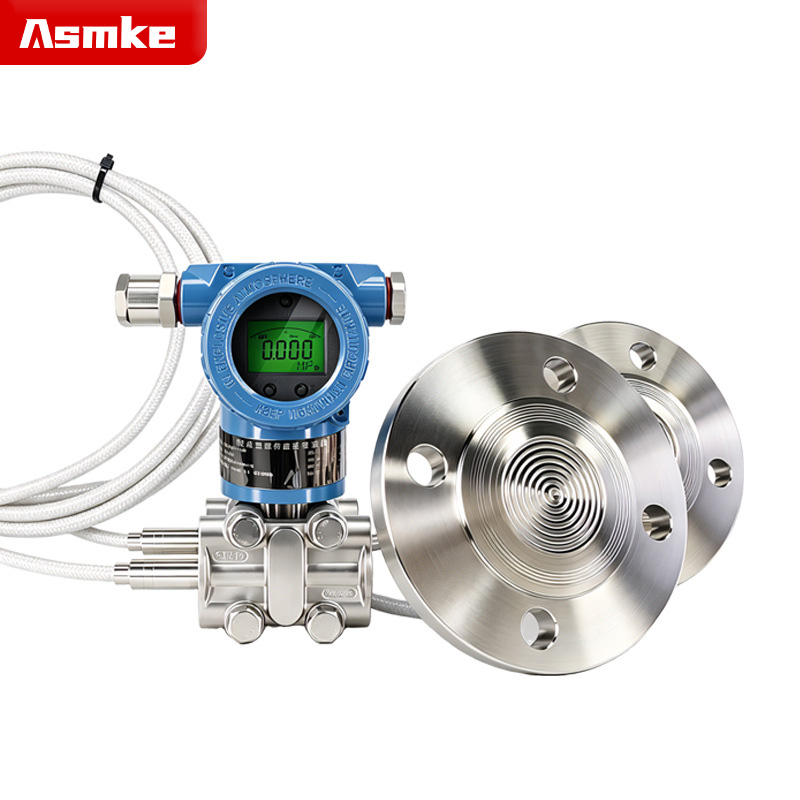

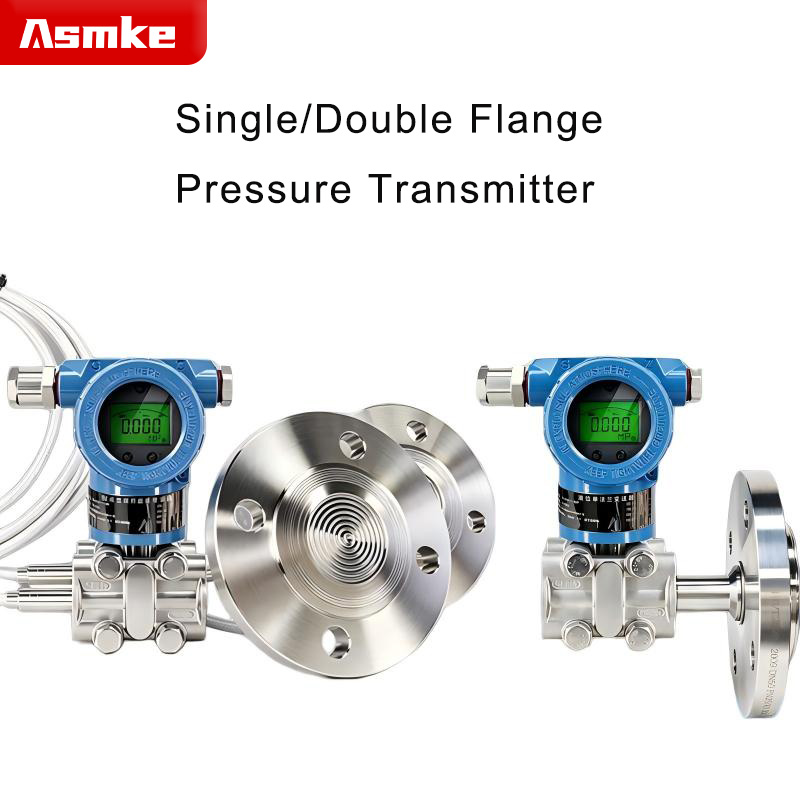

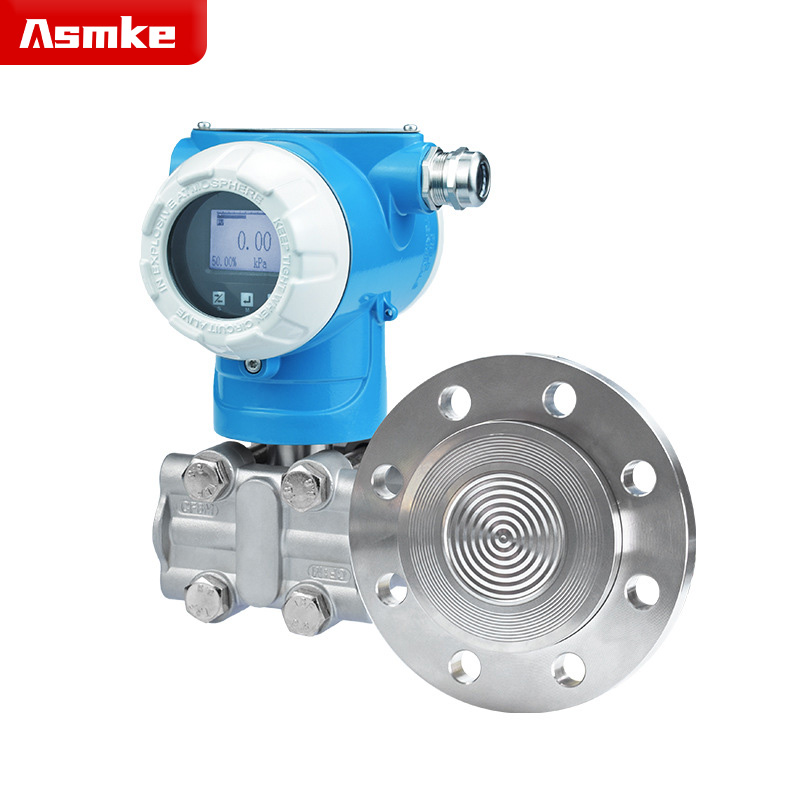

Asmke Single/Double Flange Pressure Transmitter

Description: This Single/Double Flange Differential Pressure Transmitter, adopts single silicon sensor, suitable for anti-corrosion, anti-clogging and sanitary working conditions to measure pressure, differential pressure and liquid level. Optional 316L, Hastelloy, tantalum, PTFE coated diaphragm, supports non-standard customization, widely used in petroleum, chemical industry.

Download

Basic Parameters

Application	Pressure / Level measurement for anti-corrosion, anti-clogging & sanitary working conditions
Measuring Principle	Single Silicon
Measurement Type	Differential Pressure / Gauge Pressure / Liquid Level
Measuring Range	0–25kPa ~ 4MPa；0–6kPa ~ 40MPa；0–1kPa ~ 40MPa
Power Supply	12–36 VDC, nominal 24 VDC
Signal Output	2-wire 4–20mA, HART, RS485, 0–10V, 0–5V (optional)
Reference Accuracy	±0.1%, ±0.2%, ±0.5%
Ambient Temperature	-20 ~ 75°C
Medium Temperature	-40 ~ 150°C；-40 ~ 150°C ~ 420°C
Process Connection	Flange, Tri-clamp

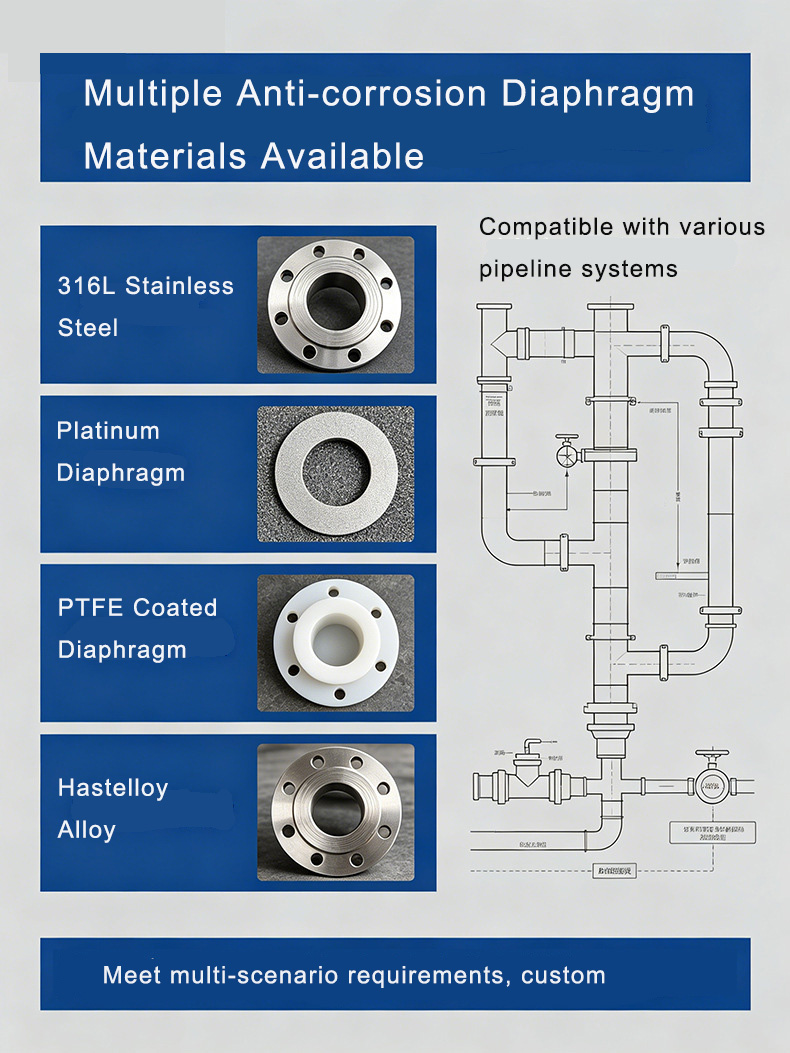

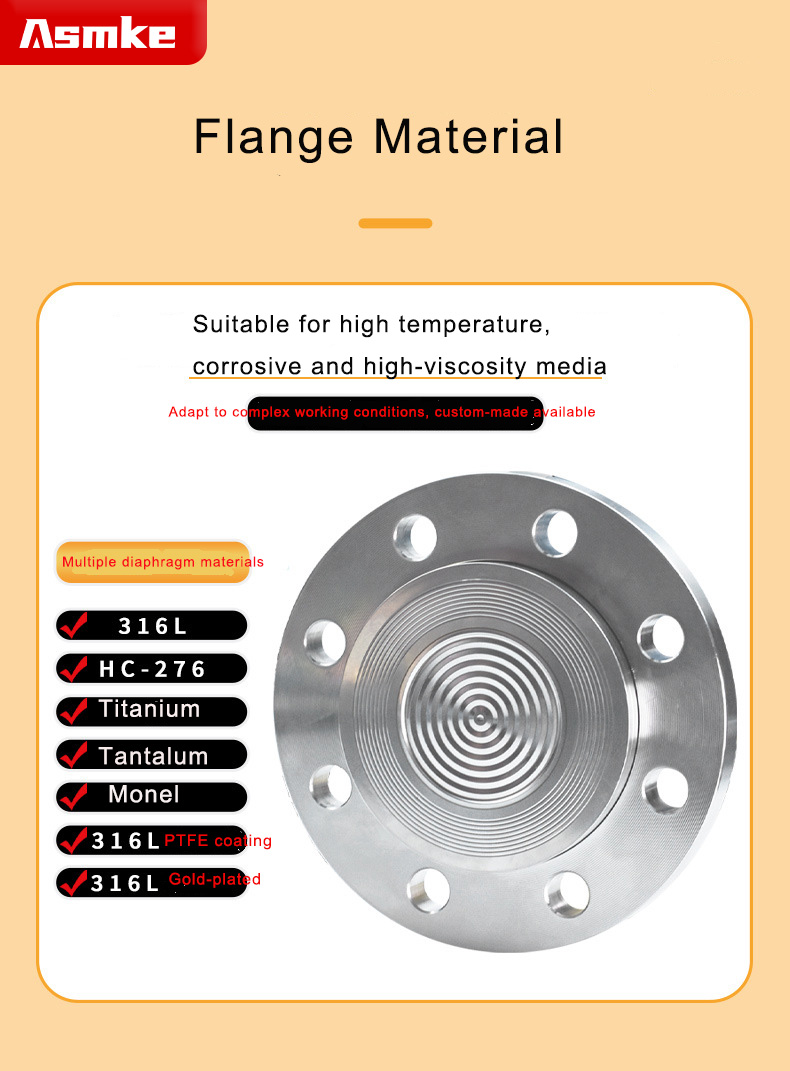

Diaphragm Material	316L stainless steel, Hastelloy C, tantalum diaphragm, PTFE coated diaphragm, gold-plated diaphragm, etc.
Housing Material	Aluminum alloy, 304 stainless steel, 316 stainless steel
Response Time	≤90ms (data refresh time: 50ms)
Overload Limit	40MPa
Long-term Drift	≤±0.1% FS per year
Protection Class	IP66 / IP67
