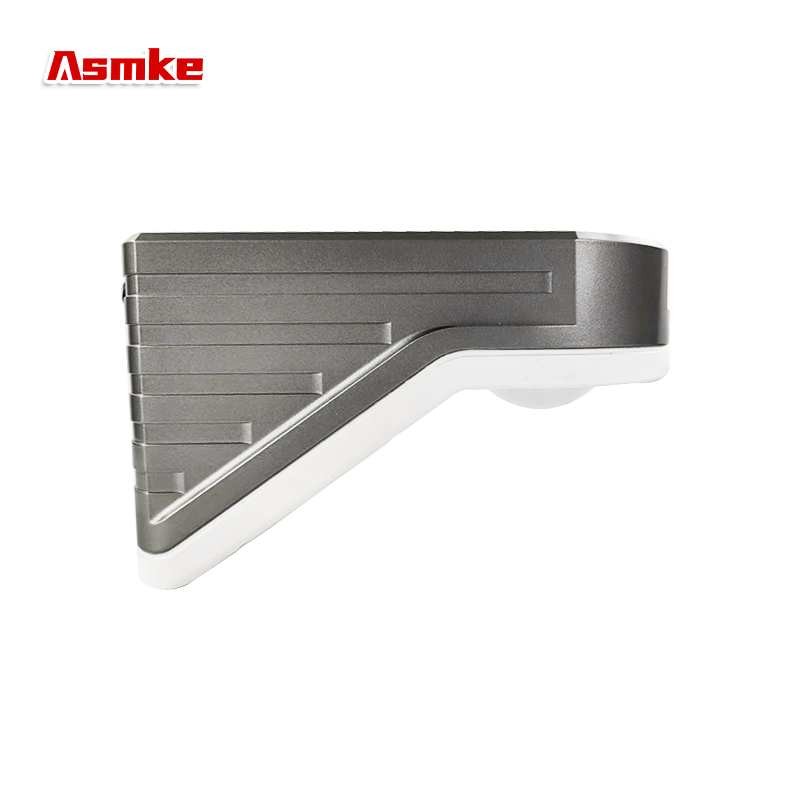

Asmke Radar Flowmeter Open Channel Surface Housing
product name

Asmke Radar Flowmeter

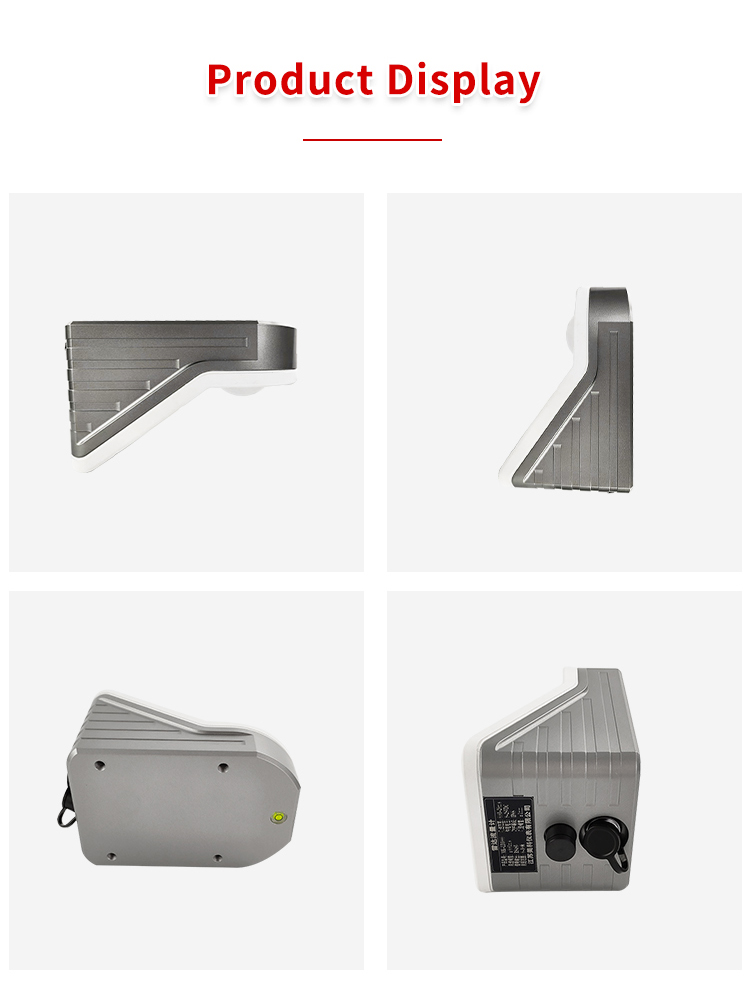

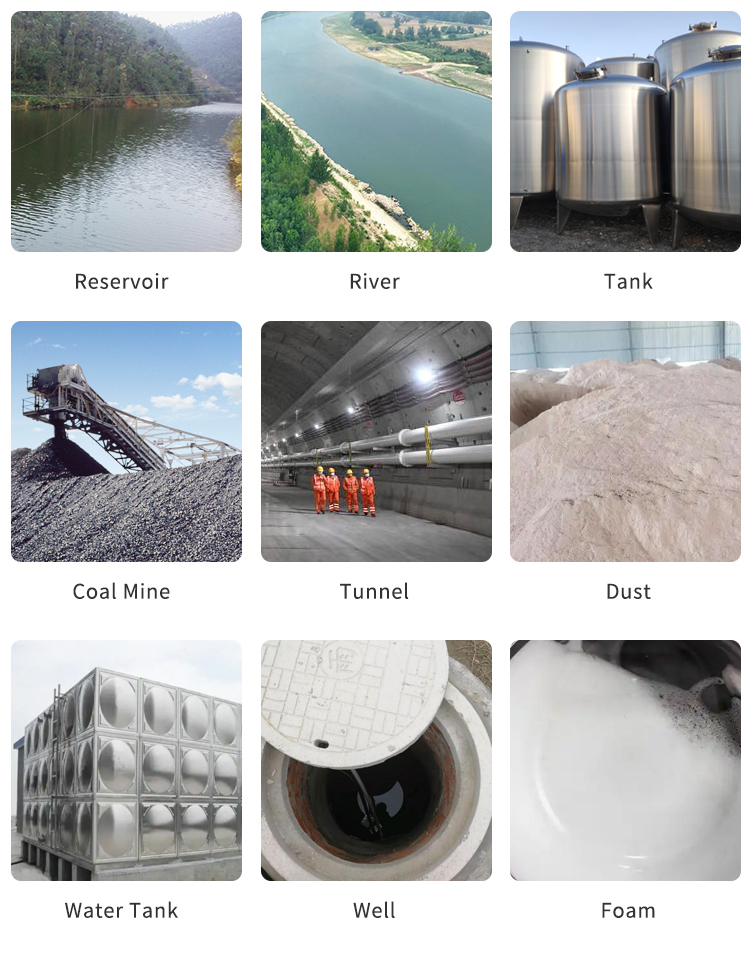

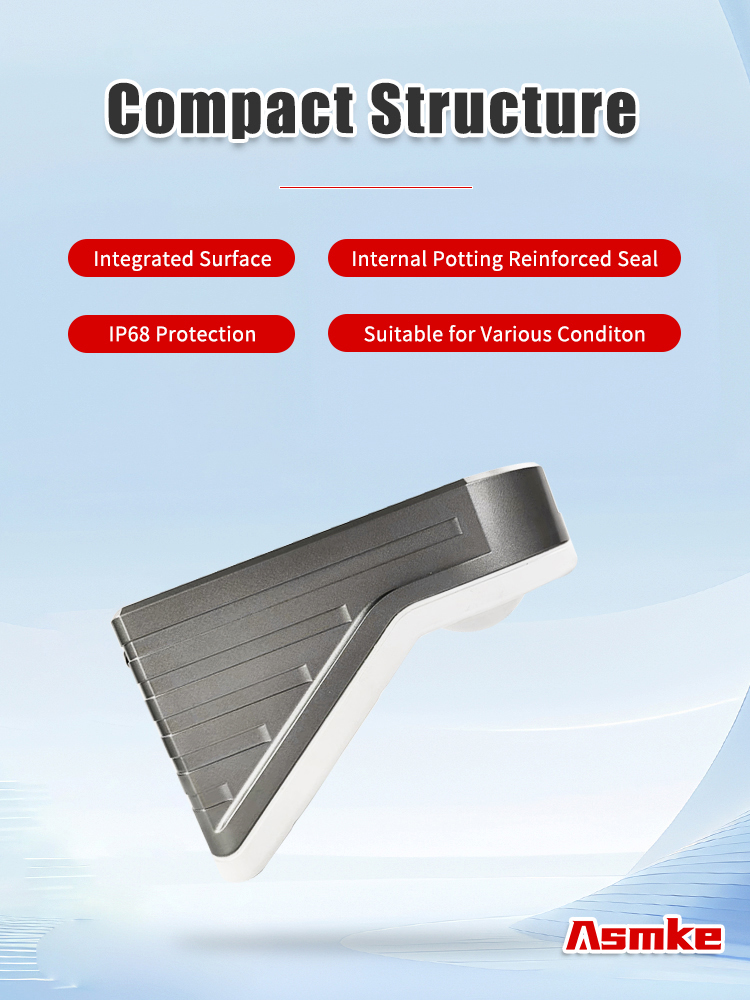

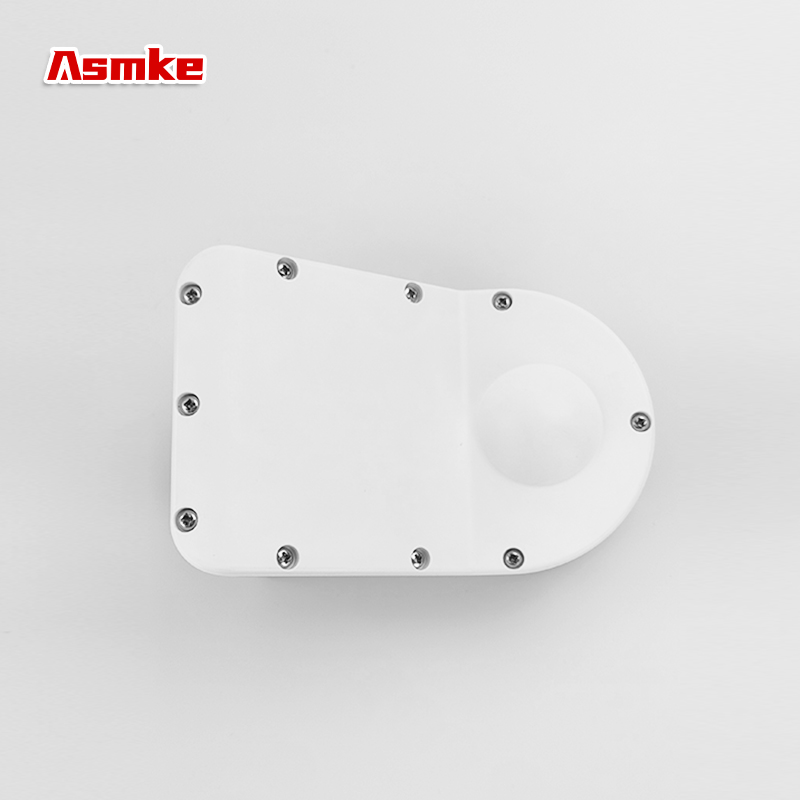

Description: The Asmike radar flowmeter features a compact structure with an integrated level bubble for easy installation and adjustment. Its fully sealed surface and potting-reinforced design adapt to various extreme outdoor working conditions. This non-contact open channel meter measures both water level and flow velocity simultaneously, delivering high accuracy with low maintenance for sewage, irrigation, and industrial wastewater applications.

Basic Parameters

Technical specifications
Speed Measurement Range0.1m/s~30m/s
Speed Measurement Accuracy±0.01m/s (Radar Simulator Calibration)
Speed Measurement Pitch Angle
 (Automatic Compensation)
0°-80°
Speed Measurement Antenna Beam Angle12°*25°
Blind Area for ranging8cm
Maximum Range for Ranging60m
Ranging Accuracy±1mm
Ranging Antenna Beam Angle
Power Supply Range9~28VDC
Working CurrentWorking Current 25ma@12V

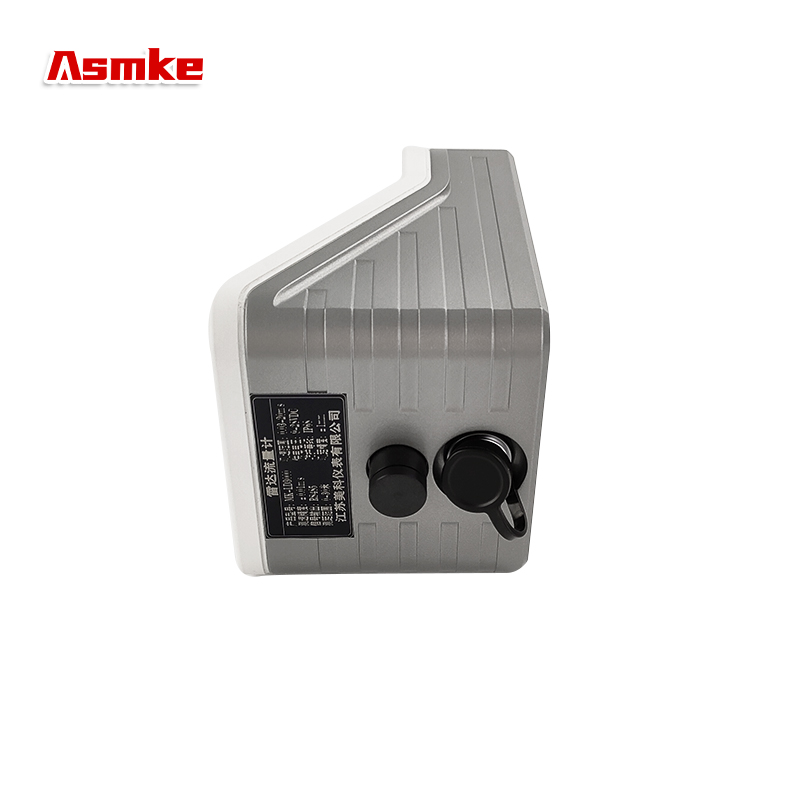

Communication InterfaceRS485 (baud rate), Bluetooth (5.2)
Communication ProtocolModbus(9600/115200)RTU
Working Temperature-30-70°
Casing MaterialAluminum Alloy,PBT
Dimensions (mm)142mm*84mm*94mm
Protection LevelIP68
Installation MethodBracket

Product Description
