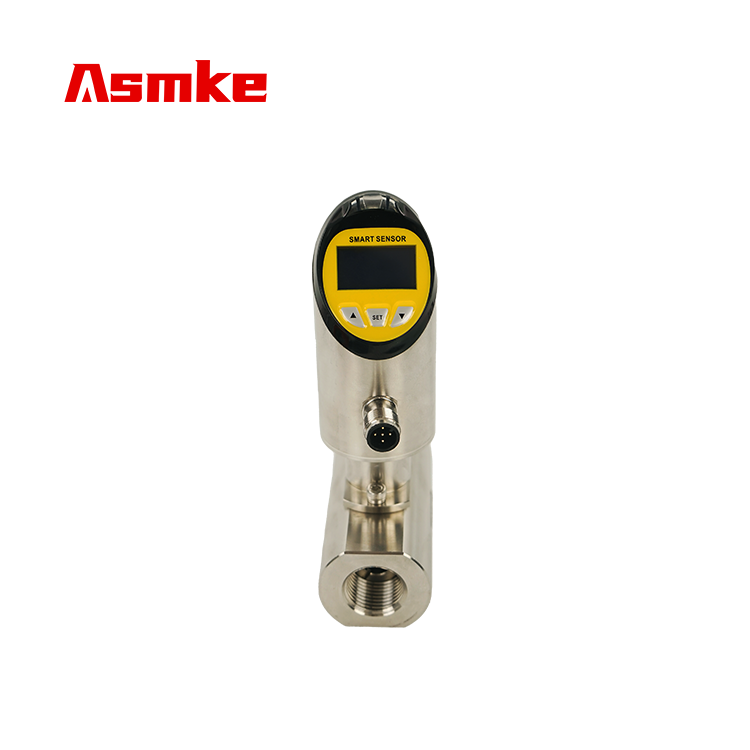

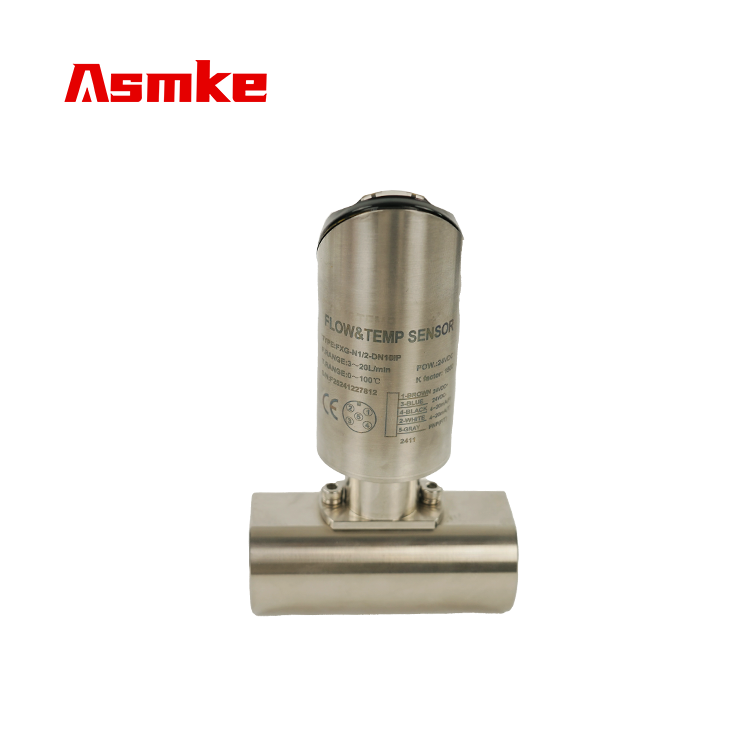

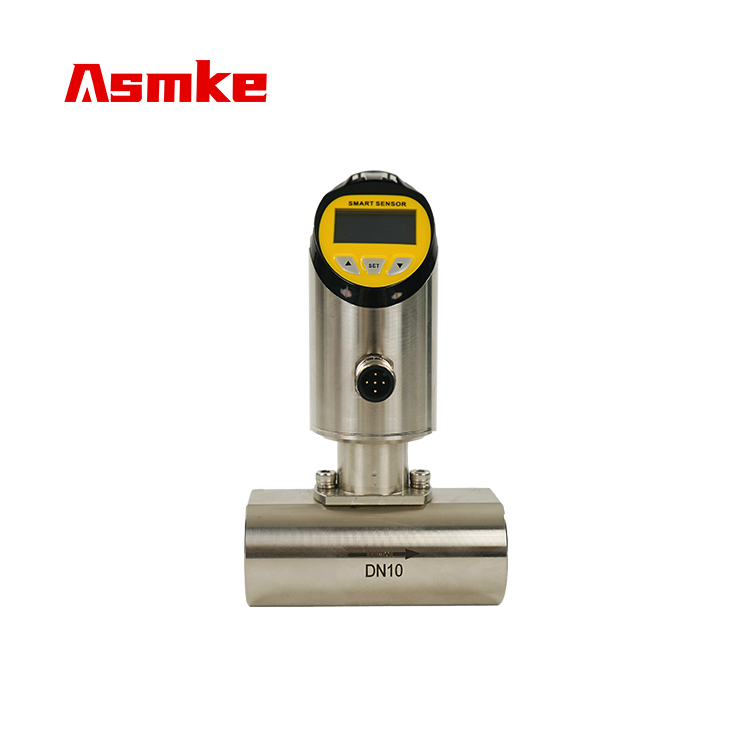

Asmke Integrated Flow and Temperature Sensor Turbine Flowmeter

Description: Asmke integrated flow & temperature turbine flowmeter monitors liquid flow and temperature simultaneously, OLED real-time display, 0.3 high precision, 4-20mA pulse & NPN/PNP alarm output, widely used in petrochemical, power, food processing industries.

Download

Basic Parameters

Flow Parameters
Environmental conditions	-20-85℃,≤85%RH
Flow accuracy	0.5 level, 0.3 level

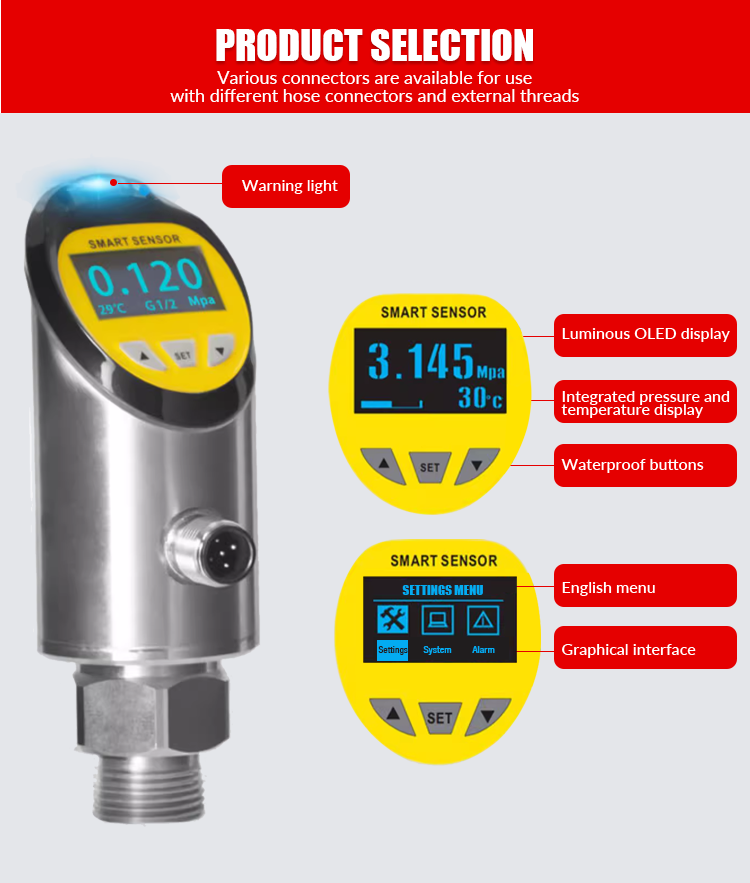

Display	OLED 128X64
Switching time	ON:≤2s:0FF:≤2s(1-2s)
Output	One alarm contact, 4-20mA, pulse output (settable)
Alarm contact type	NPN,PNP
Contact capacity	0.15A/125VAC,0.5A/30VDC
Temperature Parameters
Measurement range	0-100℃, customized
Accuracy	0.1℃
Display	OLED 128X64
Output	One alarm contact, 4-20mA (settable)
Alarm contact type	NPN,PNP
Insulation resistance	50MO at 100VDC
Working voltage	24VDC
Power consumption	3W(24VDC)

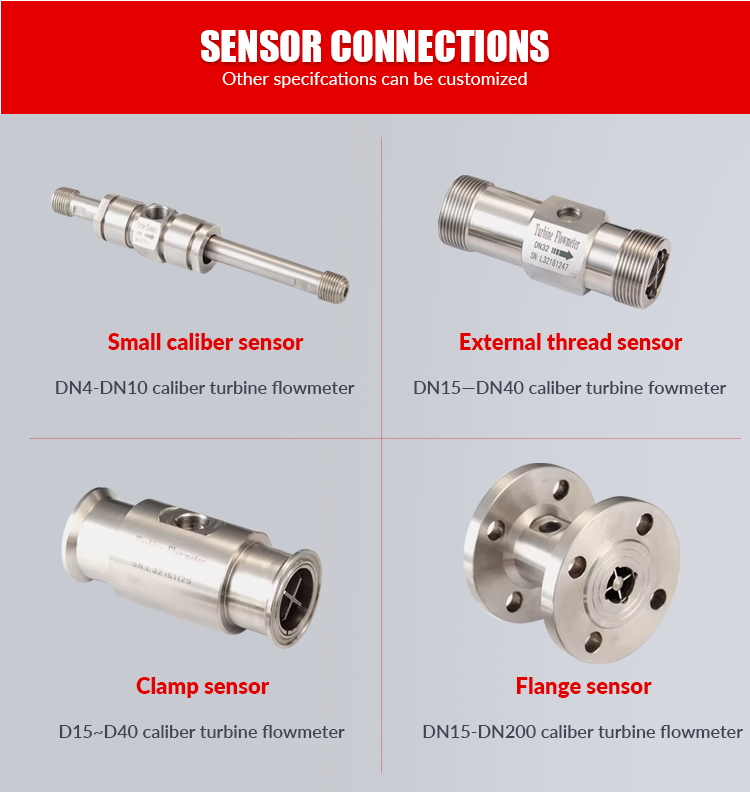

Interface mode	Thread, clamp, flange

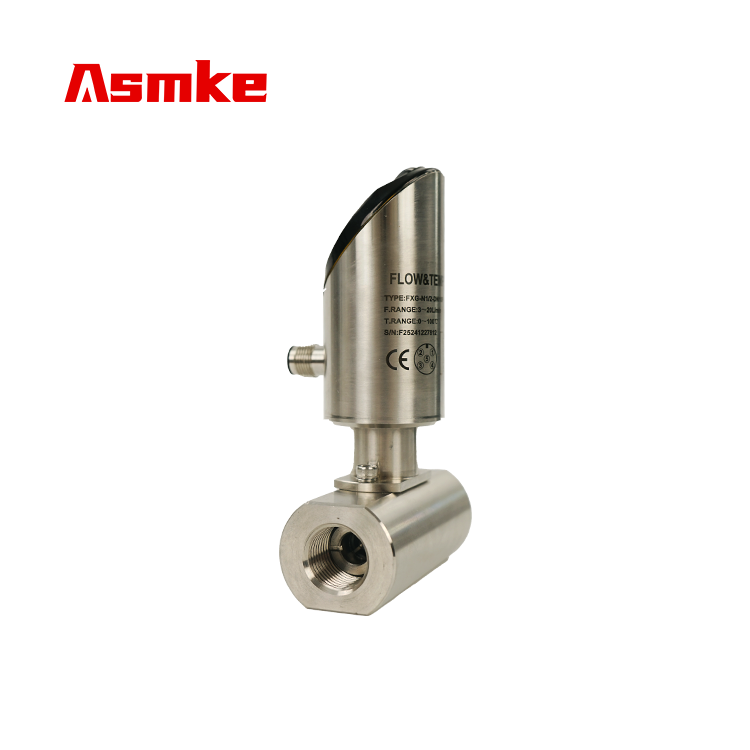

Material	Shell material: stainless steel, Probe material: 316L stainless steel
