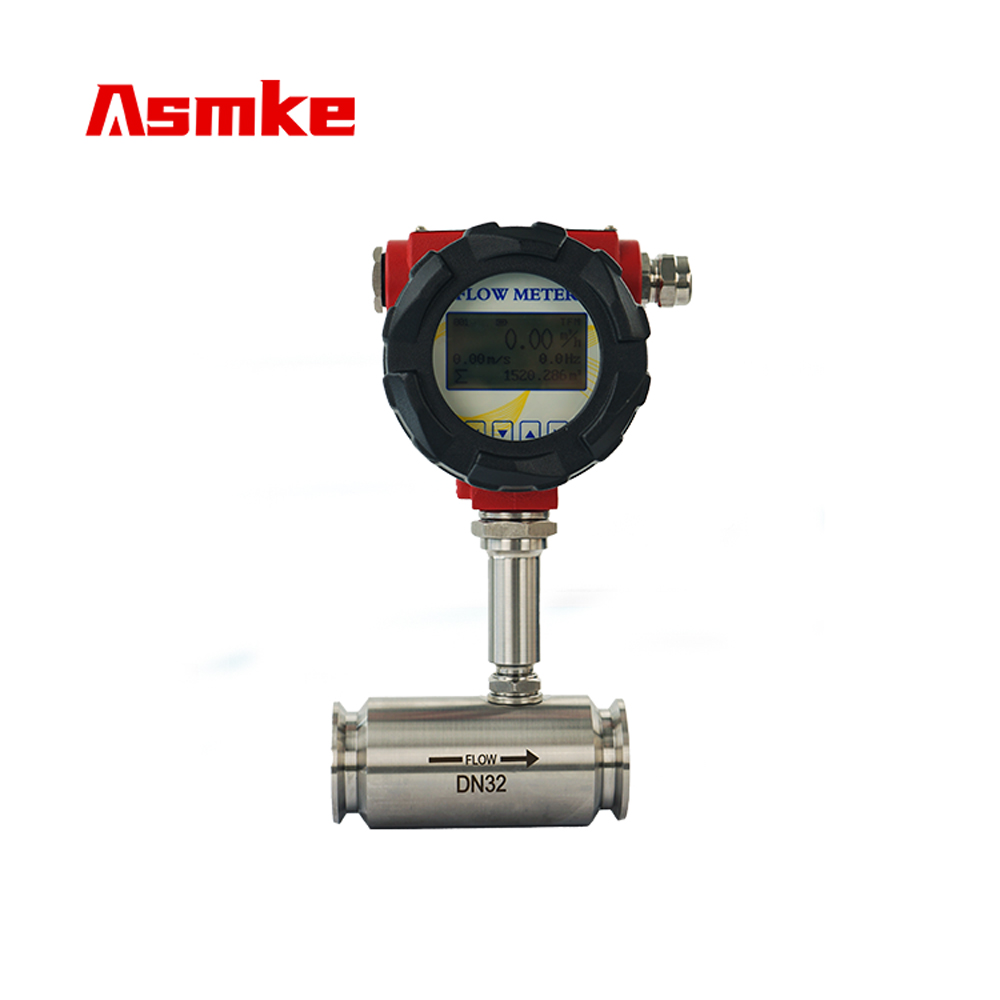

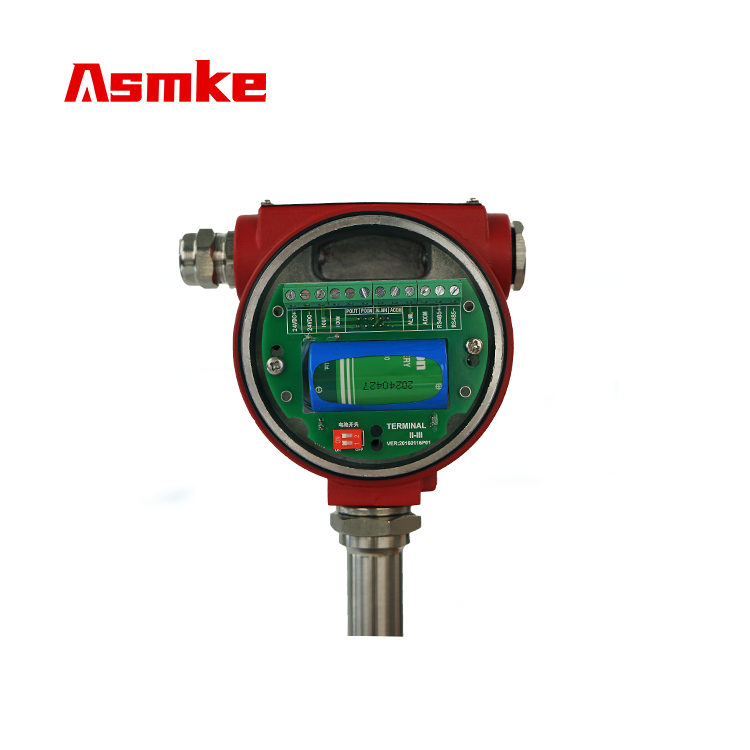

Asmke Liquid Turbine Flowmeter Clamp Connection

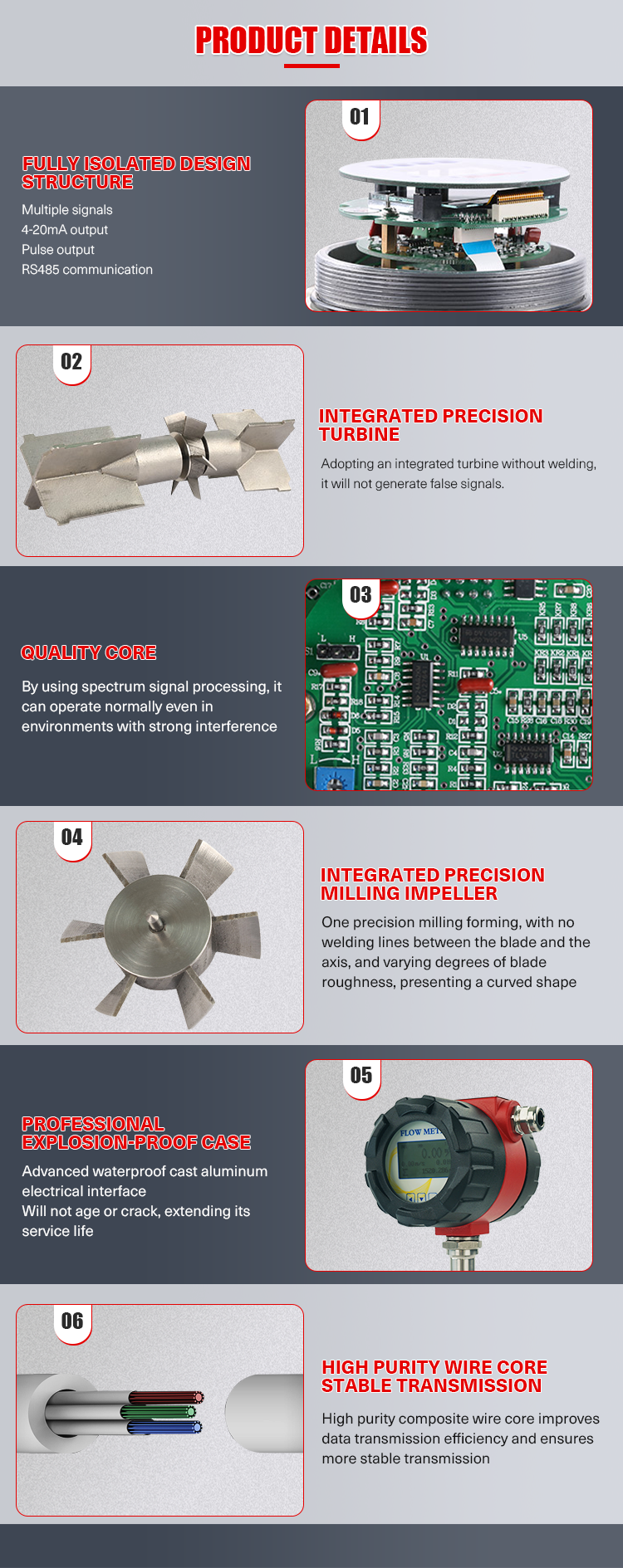

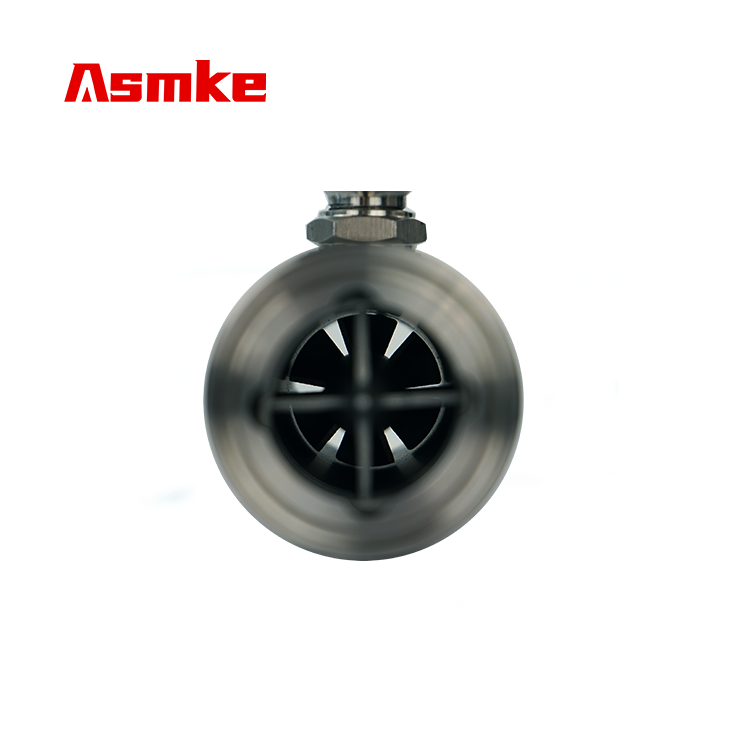

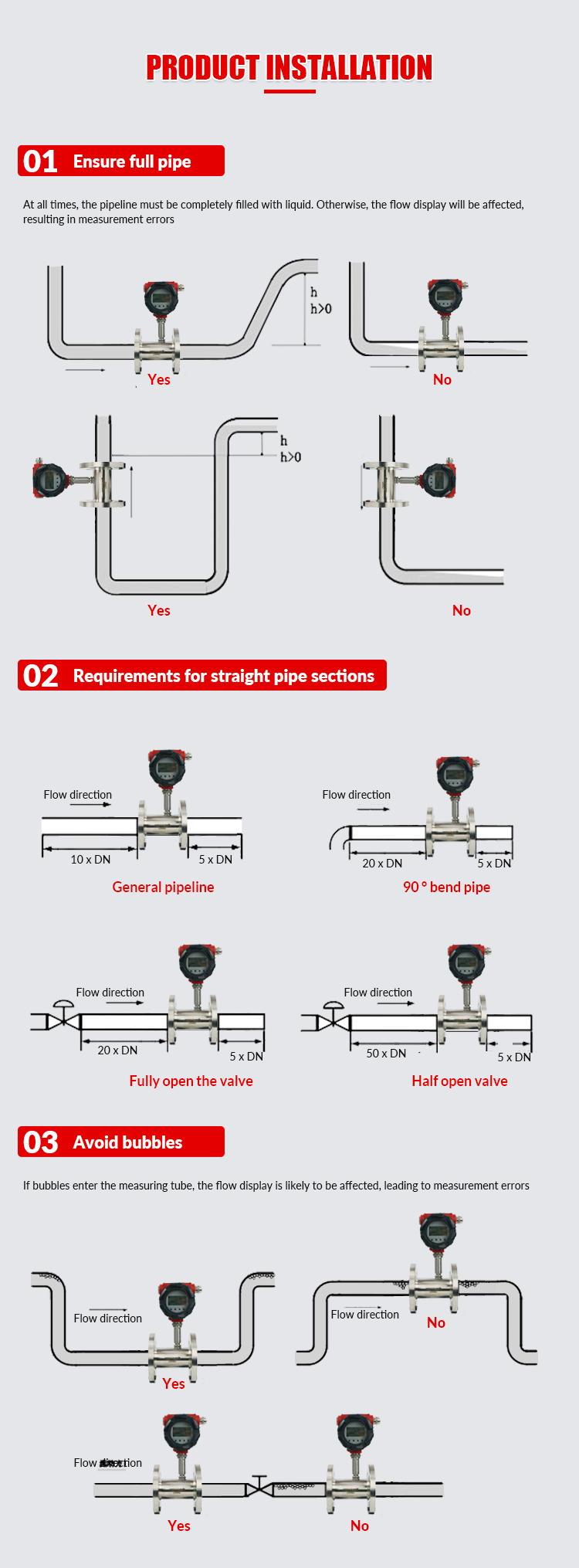

Description: This turbine flowmeter has the characteristics of simple structure, light weight, high accuracy, good repeatability, sensitive response, easy installation and maintenance, etc. High accuracy, generally up to ±1%R, ±0.5%R, high-precision type up to ±0.2%R.Suitable for high-pressure measurement, no need to open holes on the sensor body, easy to make high-pressure instrument. Can be made into an insertion type, suitable for large-caliber measurement, small pressure loss, low price, can be taken out

Basic Parameters

Technical Parameters
Measured medium	No impurities, low viscosity, no strong corrosive liquid

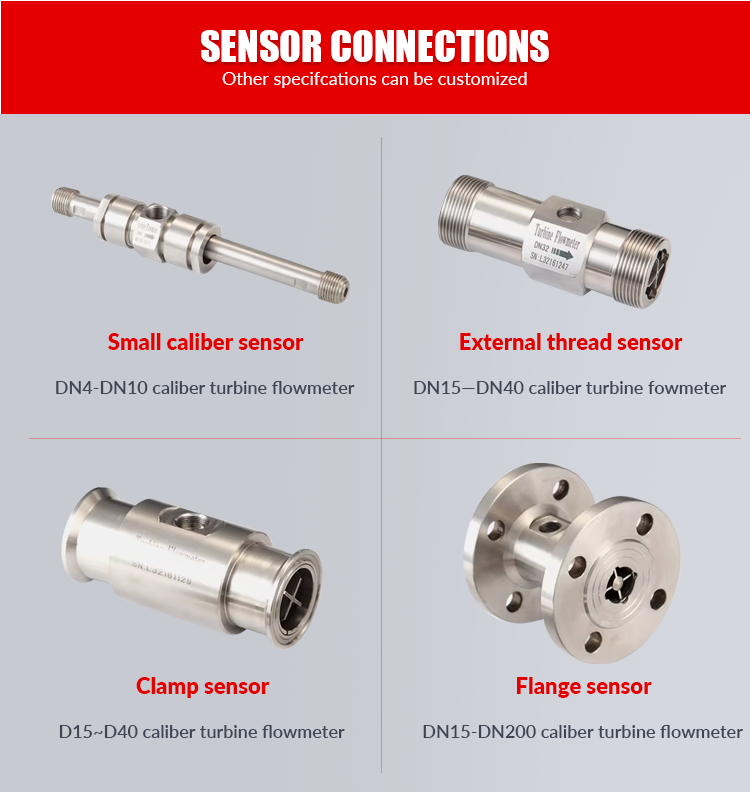

Instrument diameter and Connection method	DN 4,6,10,15,20,25,32,40 threaded connection DN(15,20,25,32,40)50,65,80,100,125,150,200 Integral Flange Connection or Clamping Flange Connection DN(150,200)250,300,350,400,500,600,700,800,900,1000,1100 Plug-in connection
Thread specification	British pipe thread (external thread), internal thread, spherical thread, NPT thread, etc. can be customized
Accuracy level	Pipeline type: 1.5%, 1%, 0.5%, 0.2% (need to be specially made)
	Plug-in: 5%, 2.5%
Range ratio	1:10-120
Usage conditions	Medium temperature	T1 (general type, standard)	-20℃~+80℃
		T2 (High temperature type, customized)	-20℃~+120℃
		T3 (High temperature type, customized)	-20℃~+150℃
	Ambient temperature	-20℃~60℃	Relative humidity	5%~90%
	Atmospheric pressure	86KPa~106KPa

Flow Range and Working Pressure
Instrument Diameter (mm)	Normal Flow Range (m³/h)	Extended Flow Range (m³/h)	Conventional Connection Method and Pressure Rating	Special pressure rating (MPa)	Normal pressure resistance
DN4	0.04-0.25	0.04-0.4	Threaded Connection/6.3MPa	101625	0.12MPa
DN6	0.1-0.6	0.06~0.6	Threaded Connection/6.3MPa	4.06.0101625	0.08MPa
DN10	0.2-1.2	0.15-1.5	Threaded Connection/6.3MPa		0.05MPa
DN15	0.6~6	0.4~8	Threaded Connection/6.3MPa	4.063101625	0.035 (MPa)
			Flange Connection/4.0MPa
DN20	0.8-8	0.45-9	Threaded Connection/6.3MPa	4.06.0101625
			Flange Connection/4.0MPa
DN25	1~10	0.5~10	Threaded Connection/6.3MPa	4.06.3101625
			Flange Connection/4.0MPa
DN32	1.5~15	0.8~15	Threaded Connection/6.3MPa	4.06.0101625	0.025 (MPa)
			Flange Connection/4.0MPa
DN40	2~20	1-20	Threaded Connection/6.3MPa	4.06.3101625
			Flange Connection/4.0MPa
DN50	4-40	2~40	Threaded Connection/6.3MPa	4.06.3101625
			Flange Connection/4.0MPa
DN65	7-70	4-70	Threaded Connection/1.6MPa	4.06.3101625
			Flange Connection/1.6MPa
DN80	10~100	5~100	Threaded Connection/1.6MPa	4.06.3101625
			Flange Connection/1.6MPa
DN100	20~200	10~200	Threaded Connection/1.6MPa	2.5406.3101625
			Flange Connection/1.6MPa
DN125	25~250	13~250	Flange Connection/1.6MPa	4.06.3101625
DN150	30~300	15~300	Flange Connection/1.6MPa	4.06.3101625
DN200	80-800	40~800	Flange Connection/1.6MPa	4.06.3101625

Size Chart - Internal Thread & Clamp Connection
Caliber D	Internal Threaded Connection				Clamp Connection
	L1 (mm)	D2 (mm)	G (mm)	LG (mm)	L (mm)	D1 (mm)	A (mm)	B (mm)
DN4	80	38	1/4	16	50	50.5	46	40.5
DN6	80	38	1/4	16	50	50.5	46	40.5
DN8	80	38	1/4	16	50	50.5	46	40.5
DN10	80	38	3/8	16	50	50.5	46	40.5
DN12	80	38	1/2	16	50	50.5	46	40.5
DN15	110	40	1/2	16	75	50.5	46	40.5
DN20	133	48	3/4	17	85	50.5	46	40.5
DN25	150	53	1	20	100	50.5	46	40.5
DN32	172	62	11/4	24	120	50.5	46	40.5
DN40	185	70	11/2	20	140	64	59	53.5
DN50	200	78	2	25	150	77.5	73.5	68
DN65	235	90	21/2	30	175	91	86	80.5
DN80	260	100	3	30	200	106	110.5	94
DN100					220	119	113	106
