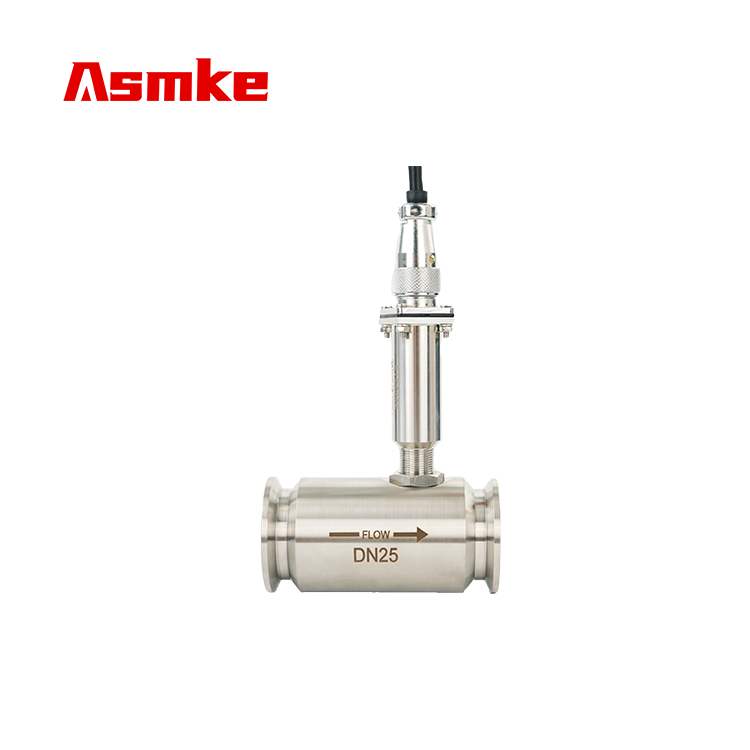

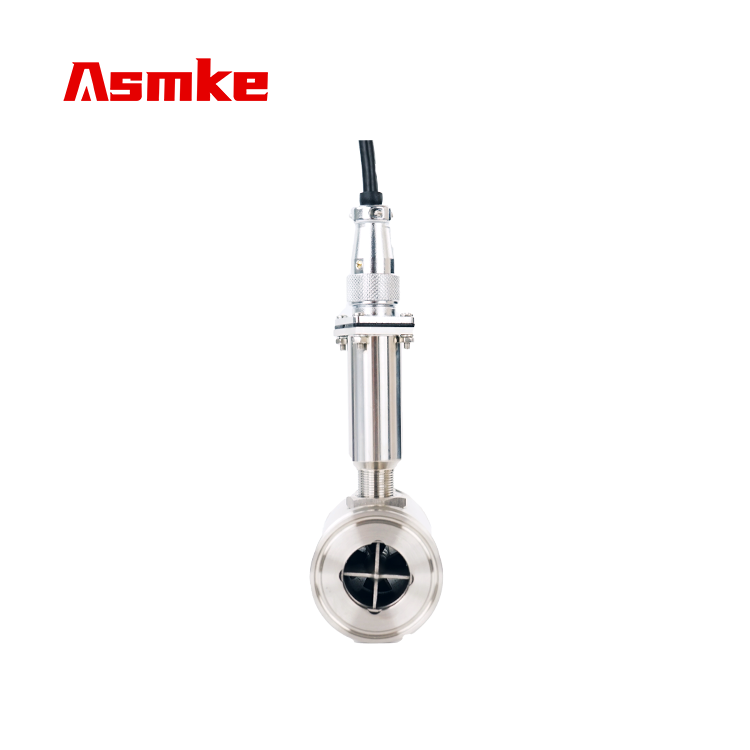

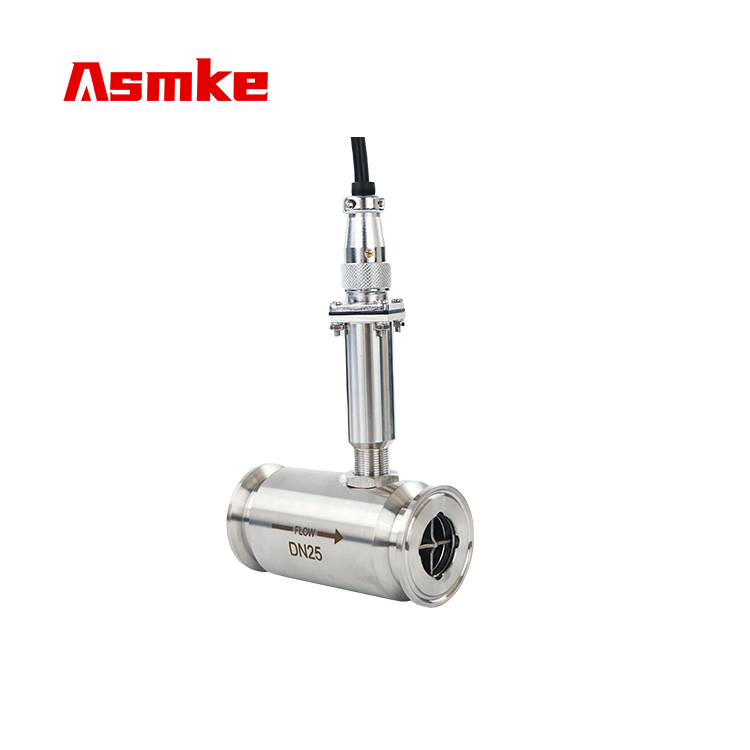

Asmke Pulse Output Turbine Flowmeter Clamp Connection Without Display

Description: This product is a liquid turbine flowmeter, which can measure all kinds of non-corrosive or weakly corrosive liquids. It is high-precision, easy to install, and can be connected to a secondary display instrument. The digital display output is 4~20mA.

Download

Basic Parameters

Technical Parameters
Measuring medium	No impurities, low viscosity, no strong corrosive liquid
Measuring accuracy	0.5%/1.0%
Nominal pressure	1.0MPa;1.6MPa;2.5MPa;4.0MPa;6.3MPa, high pressure can be customized
Medium temperature	-20℃~80℃(high temperature can be customized)
Environmental conditions	Temperature: -20℃~50℃;
Medium viscosity	Less than 5x106m²/s (liquids greater than 5x106m²/s should be calibrated with real liquid before use)
Power supply	3.6V lithium battery, 24VDC;
Output signal	Pulse, 4-20mA, RS485, 0-5V, 0-10V;
Protection level	IP65
Material	304(316 L) stainless steel, PE

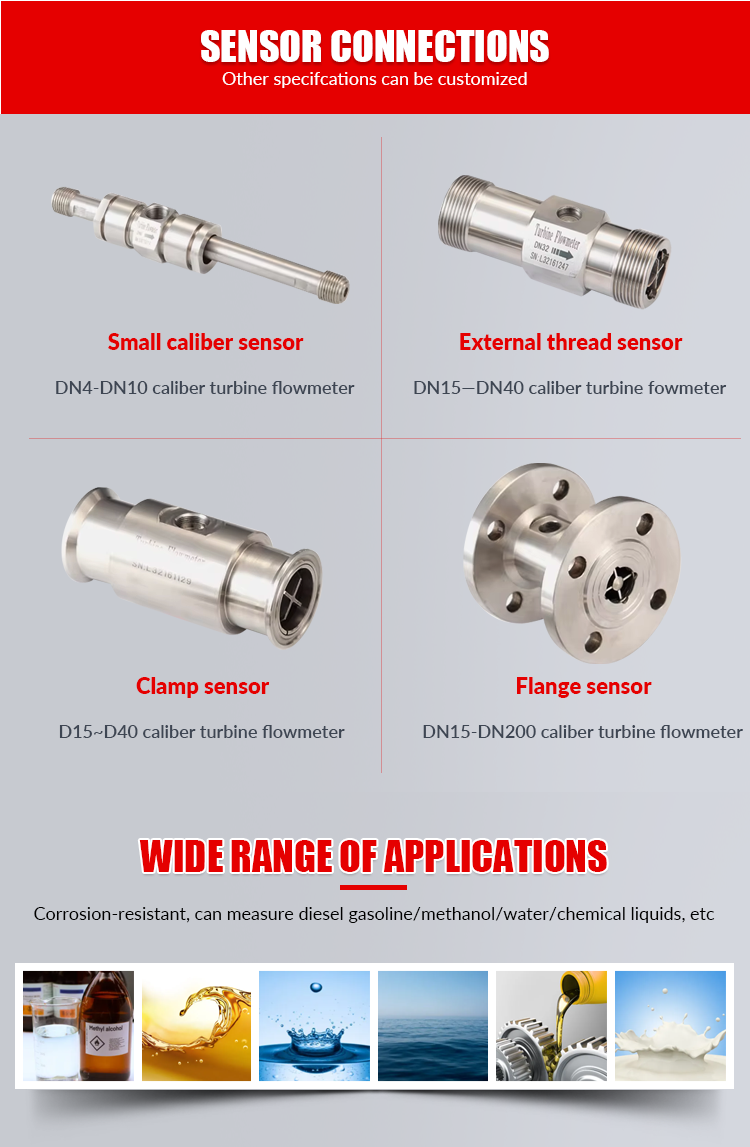

Connection method	Internal/external thread, flange, clamp
