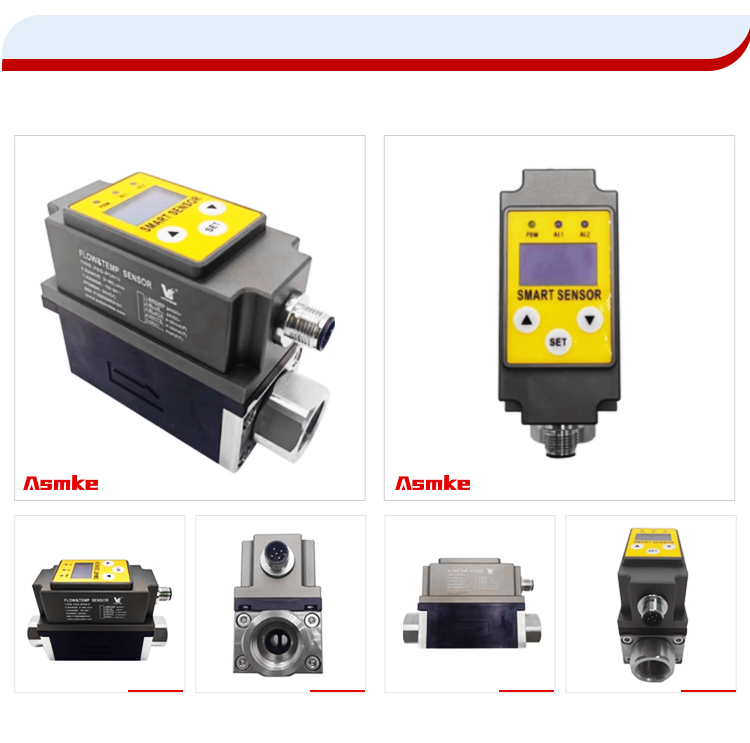

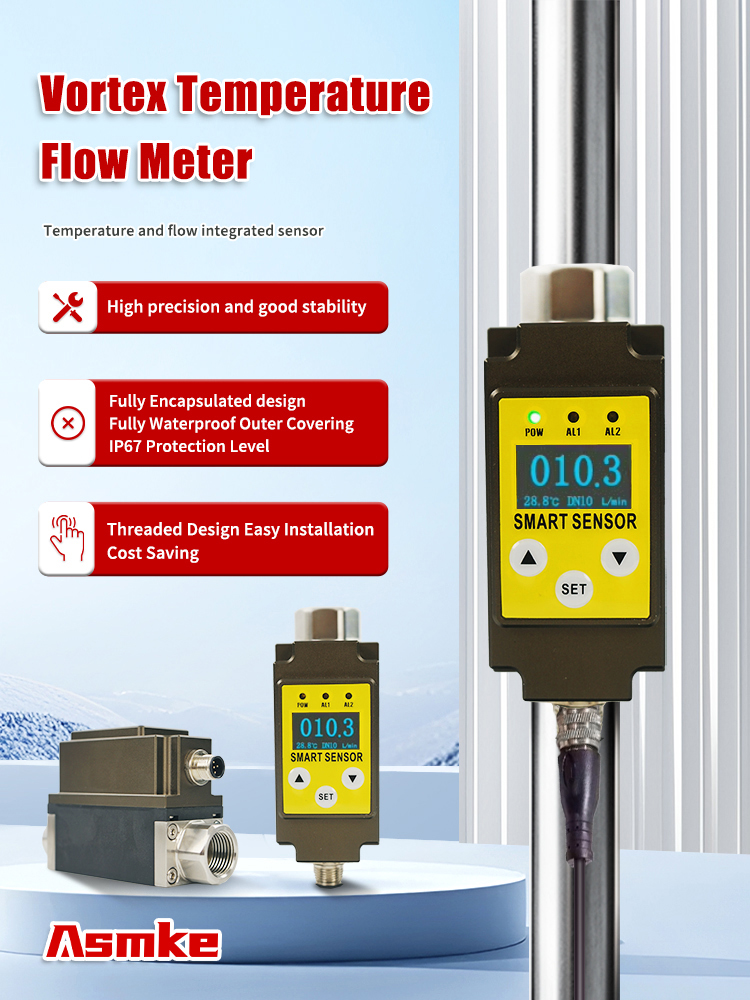

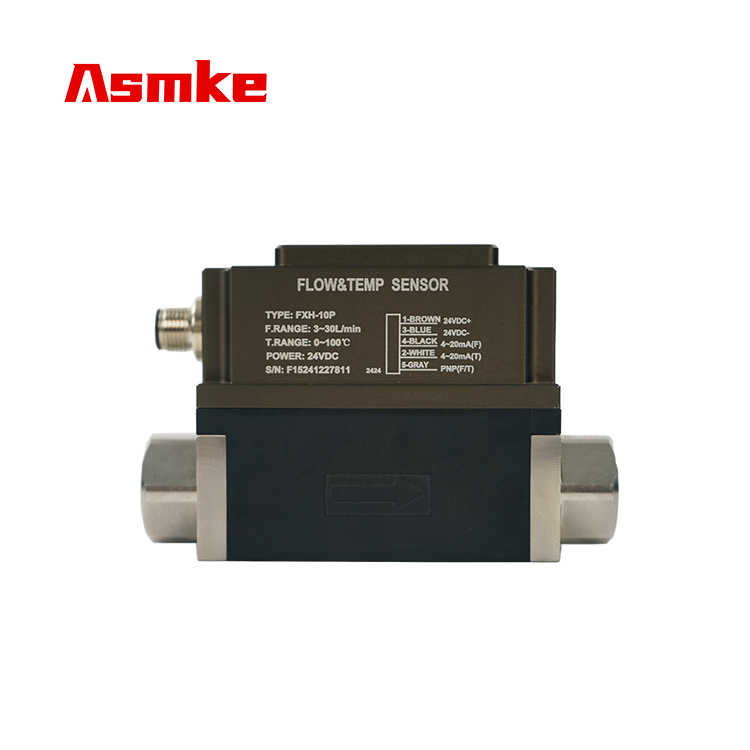

Temperature and Flow Senor Vortex Flowmeter

Description: The flow with temperature sensor has the characteristics of simple structure, good accuracy, easy installation, maintenance and use, etc. It can monitor the flow and temperature of the liquid in the pipeline in real time, provide 4-20mA signal or 485 communication, alarm switch output, and use OLED to display the fluid flow and temperature in real time, realizing the integrated monitoring function of temperature and flow in the pipeline. It is widely used in petrochemical, electric power, metall

Download

Basic Parameters

Technical Parameters
Flow Parameters	Measurement Range	DN8：1-20 L/min DN10：2-40L/min DN15：3.5-50 L/min DN20：5-100 L/min DN25：9-150 L/min
	Accuracy	Grade 1.5, Grade 2

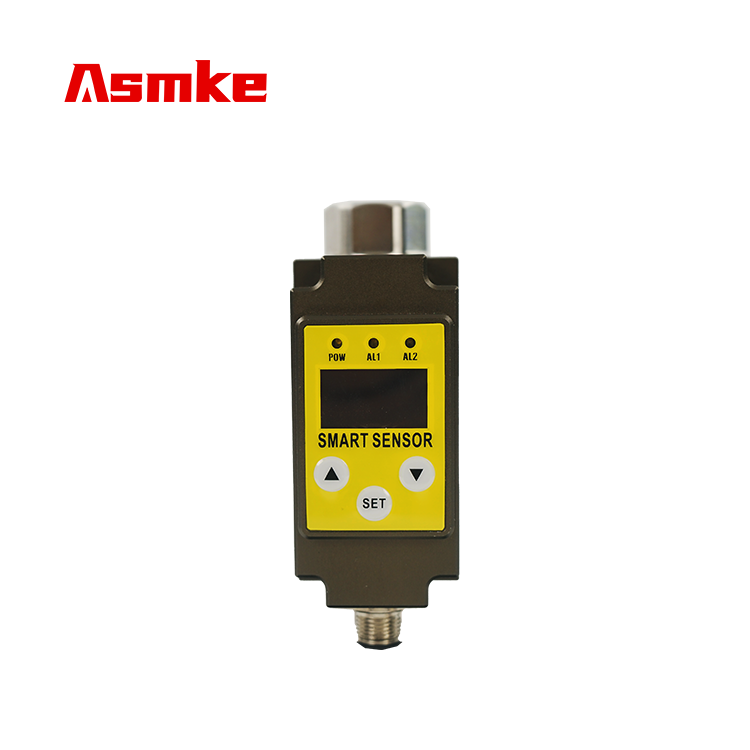

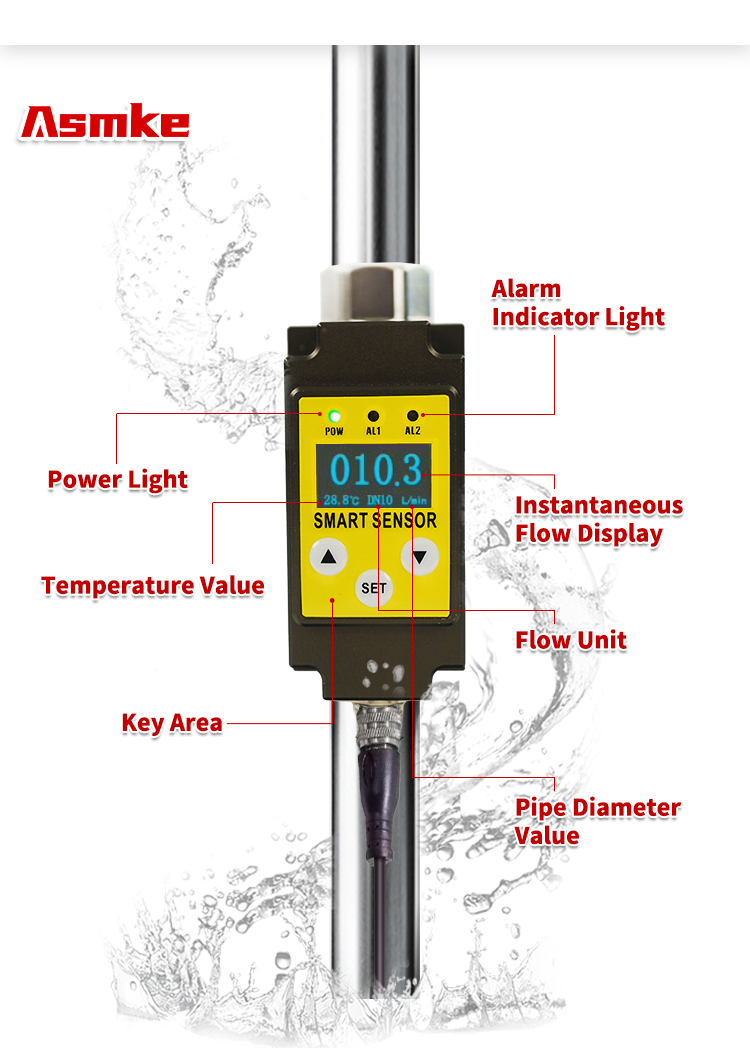

	Display	OLED 128X64
	Switching time	ON:≥5s(1-3s);0FF:≥5s(1-5s)

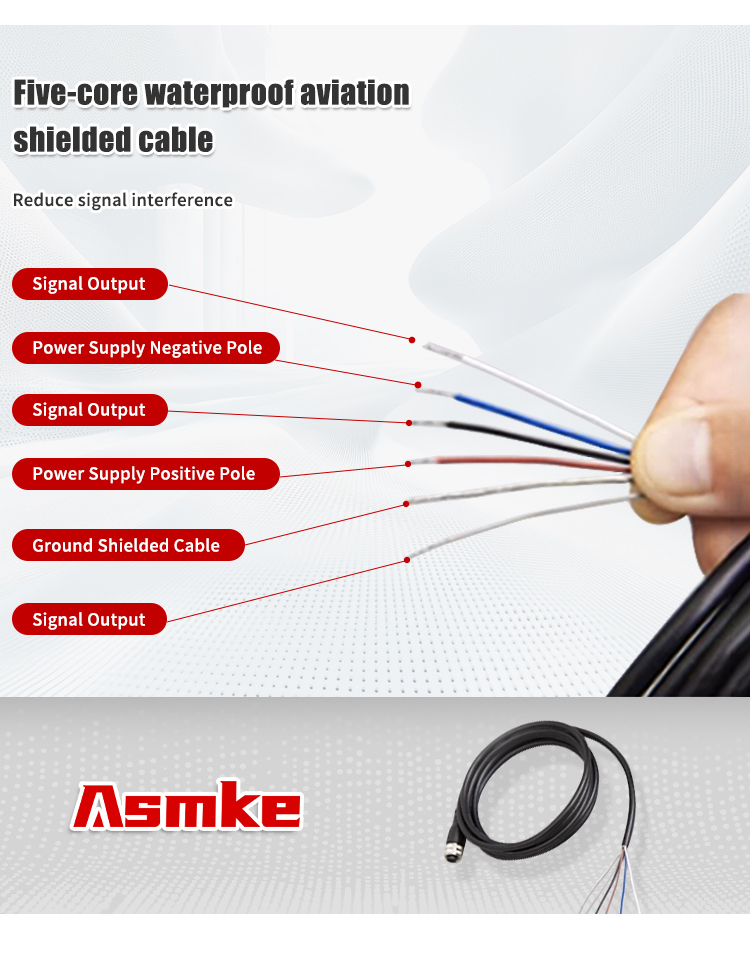

	Output	One alarm contact, 4-20mA, 485 communication
	Alarm contact type	NPN, PNP
	Contact capacity	24V/50mA
	Insulation impedance	50MO at 100VDC
	Power consumption	3W(24VDC)

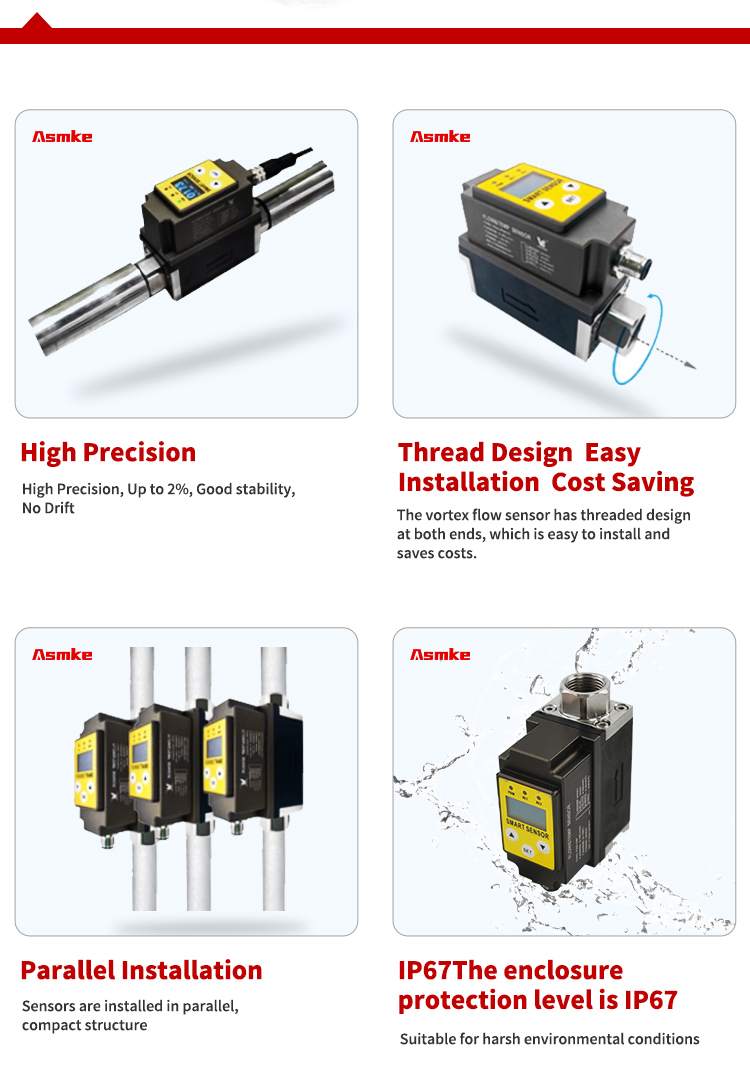

	Interface mode	G1/2, G3/4, G1 internal thread

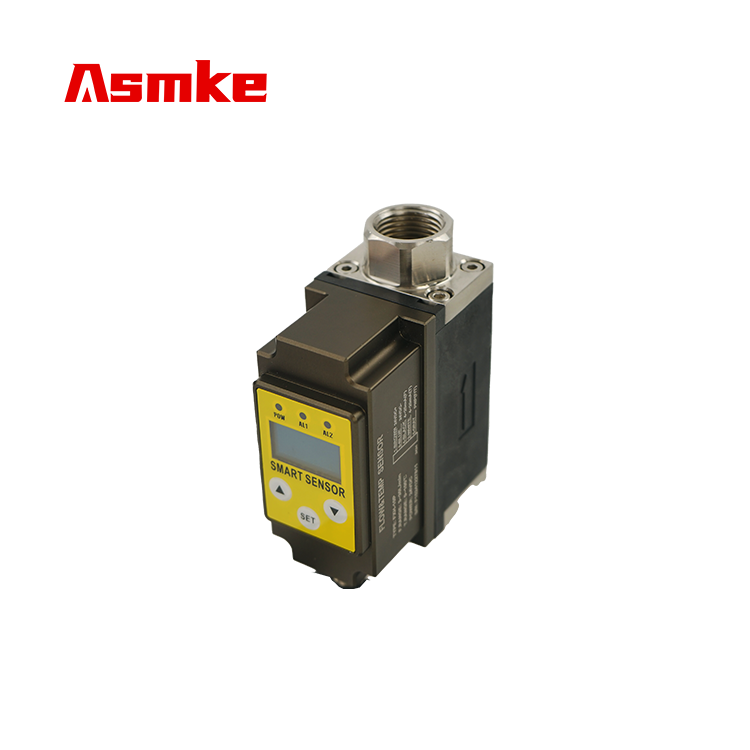

	Shell material	Aluminum alloy
	Base material	304 stainless steel + PP
Temperature Parameters	Measurement range	0~100℃、-10-90℃、customized
	Accuracy	≤1℃
	Environmental conditions	-20-85℃, <85RG
	Protection level	IP67
Adaptive Medium	Water Without impurities and Dry Gas

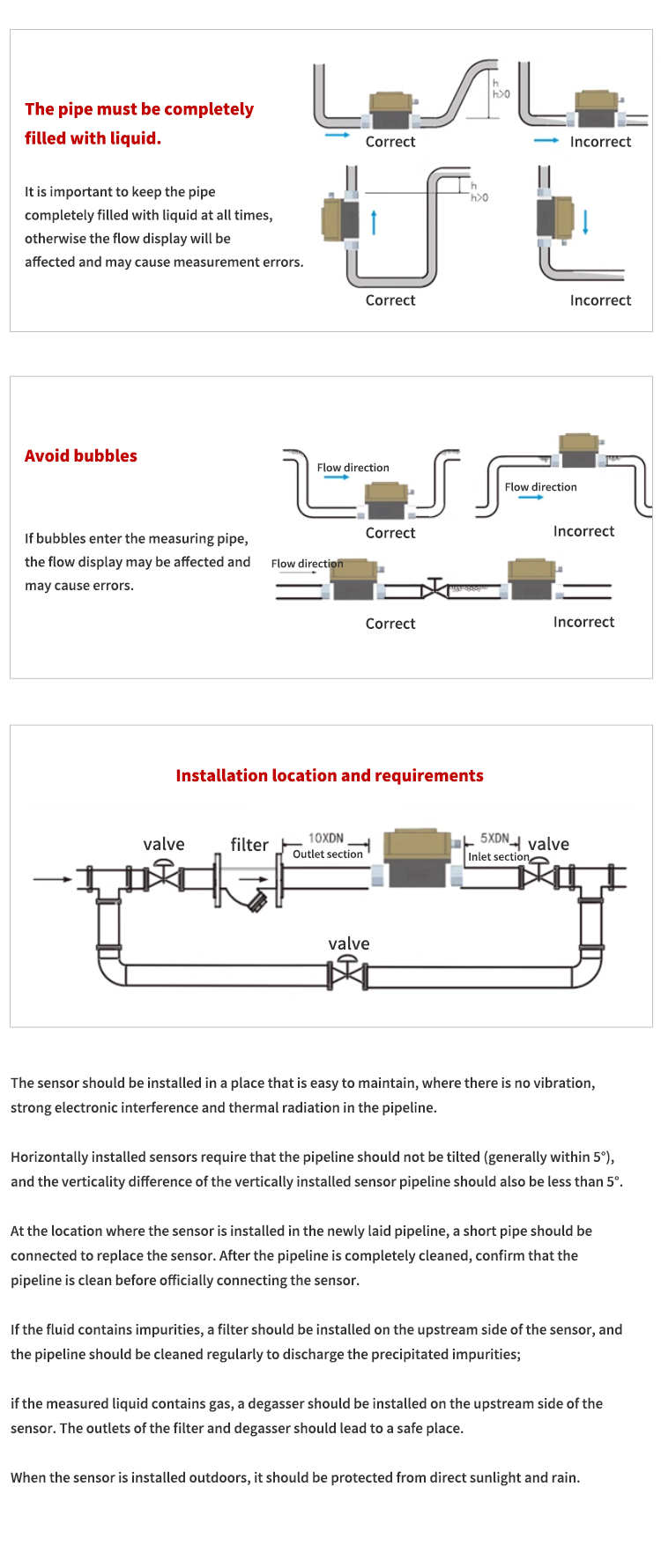

Adaptive Pipeline	Metal Pipe
