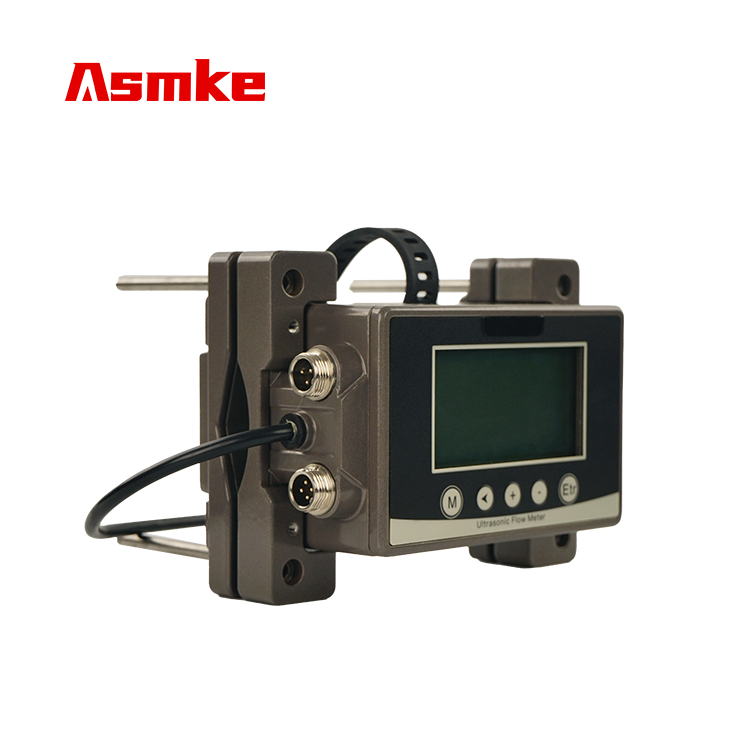

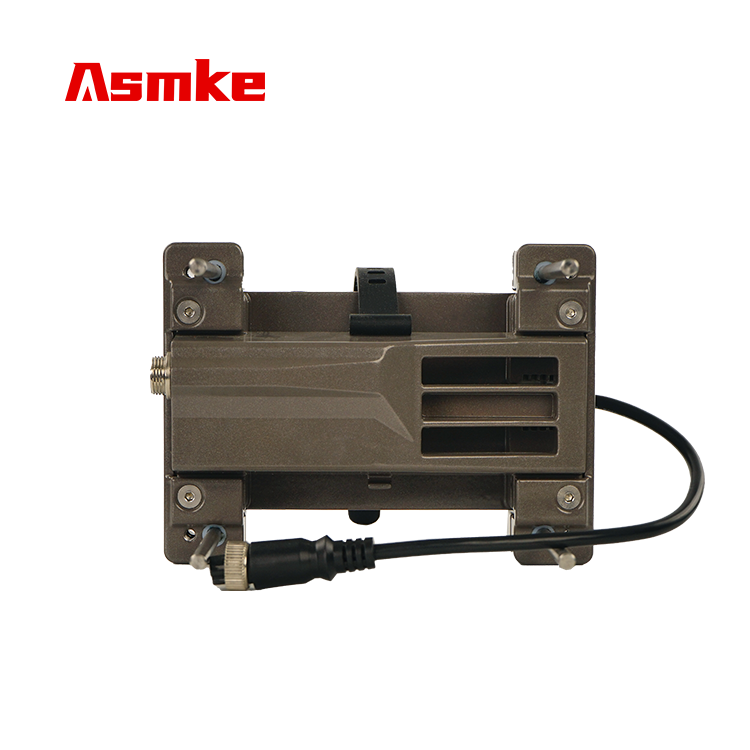

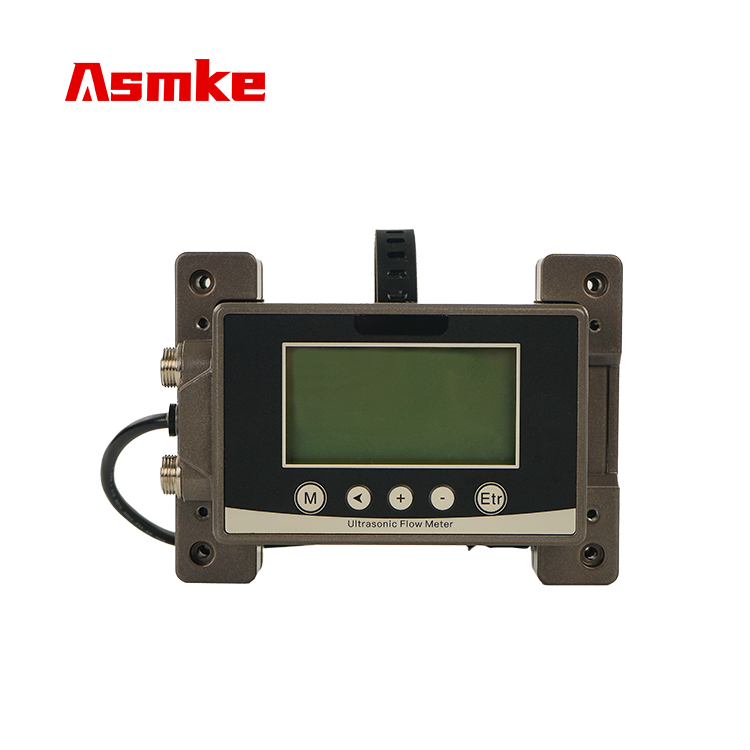

Asmke Pipe Clamp Ultrasonic Flowmeter F6

Description: Simple installation and easy operation. No need to break pipes or shut down for long periods of time, installation can be completed easily in a few minutes.Adopting a new external clamp design, it does not need to contact the measuring medium. It can avoid pressure loss and medium contamination caused by traditional flow meters.Multiple modes are available for setting, flexible and diverse. One set of machines can measure all calibers within the universal measurement range, and is suitable for a

Download

Basic Parameters

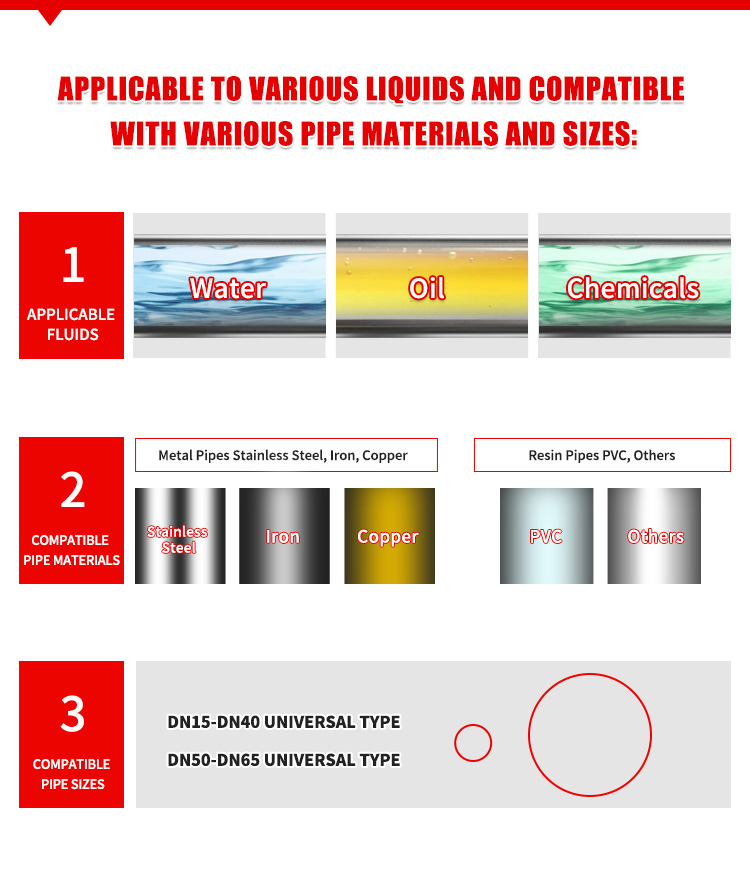

Supported pipeline materials	Metal/PVC, PP or PVDF and other hard plastic pipes
Supported liquid media	Water/other (single without solid particles and impurities)
Supported media temperature	Normal temperature type: -10~65℃; High temperature type: -10~115℃
Default low flow rate cut-off value	0.1m/s
Display mode	256*128 backlight LCD
Response time	0.5~60 seconds
Accuracy level	±2%, ±1% after calibration
Data storage cycle	300 milliseconds
Memory backup	EEPROM (data storage length: more than 10 years, data read/write frequency: more than 1 million times)
Power supply and I/O connector	M12 aviation plug
Output	4-20mA
Communication	Modbus RS485
(Optional output)	OCT (pulse output)/one relay alarm (please contact the factory for details)
Power supply	10-24V VDC
Electric power	Less than 3 W
Protection circuit	Power reverse connection protection, power surge protection,
Protection circuit	Each output short circuit protection, each output surge protection
Enclosure protection level	IP65
Ambient temperature	-10 to 60℃ (no freezing)
Relative humidity	35 to 85%RH (no condensation)
Vibration resistance	10 to 55 Hz, double amplitude 1 . 5 mm, 2 hours for each XYZ axis
Impact resistance	100 m/s216 ms pulse, 1000 times for each X, Y, and Z axis
Complete machine material	Aluminum alloy, industrial plastic
Cable length	Standard 2 meters, (PT1000 standard 9 meters)
