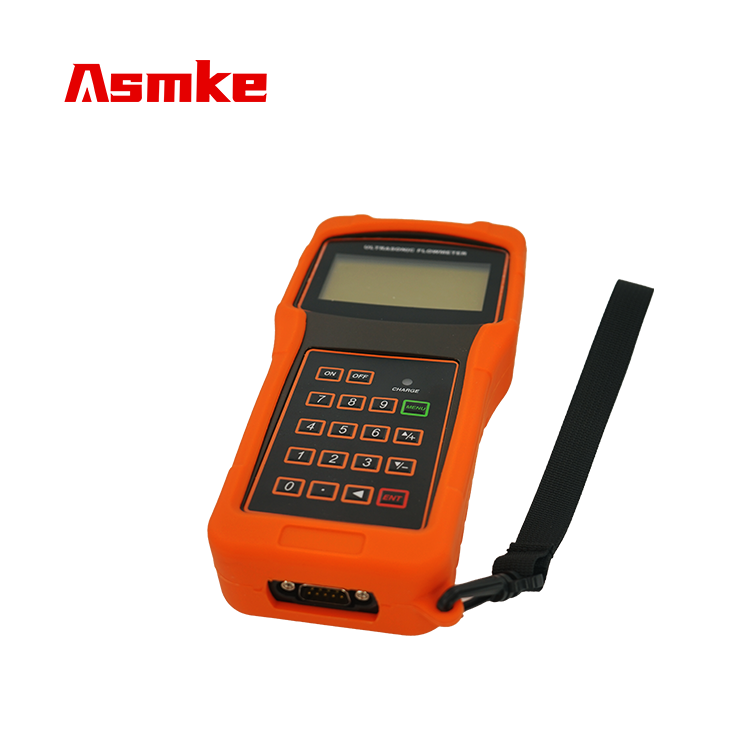

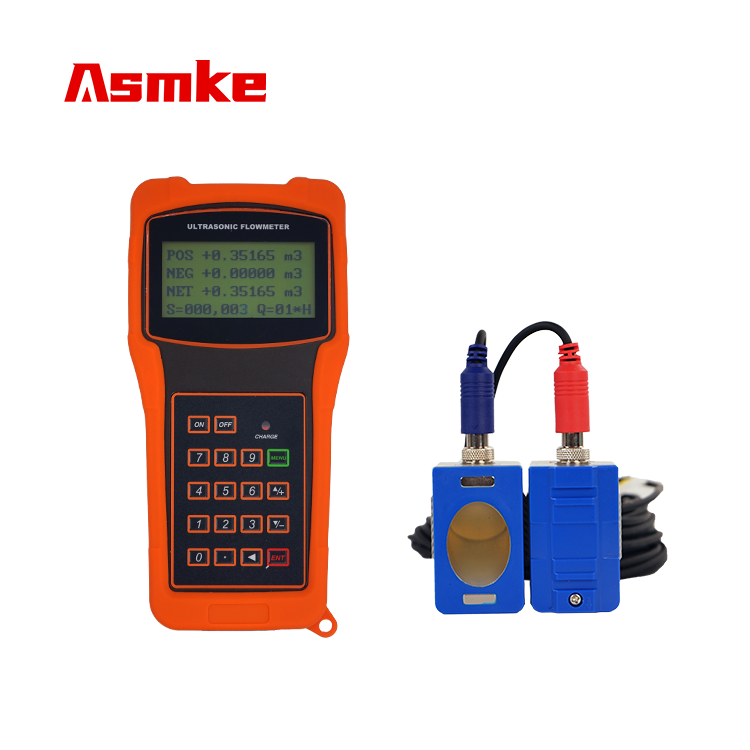

Asmke Handheld Ultrasonic Flowmeter

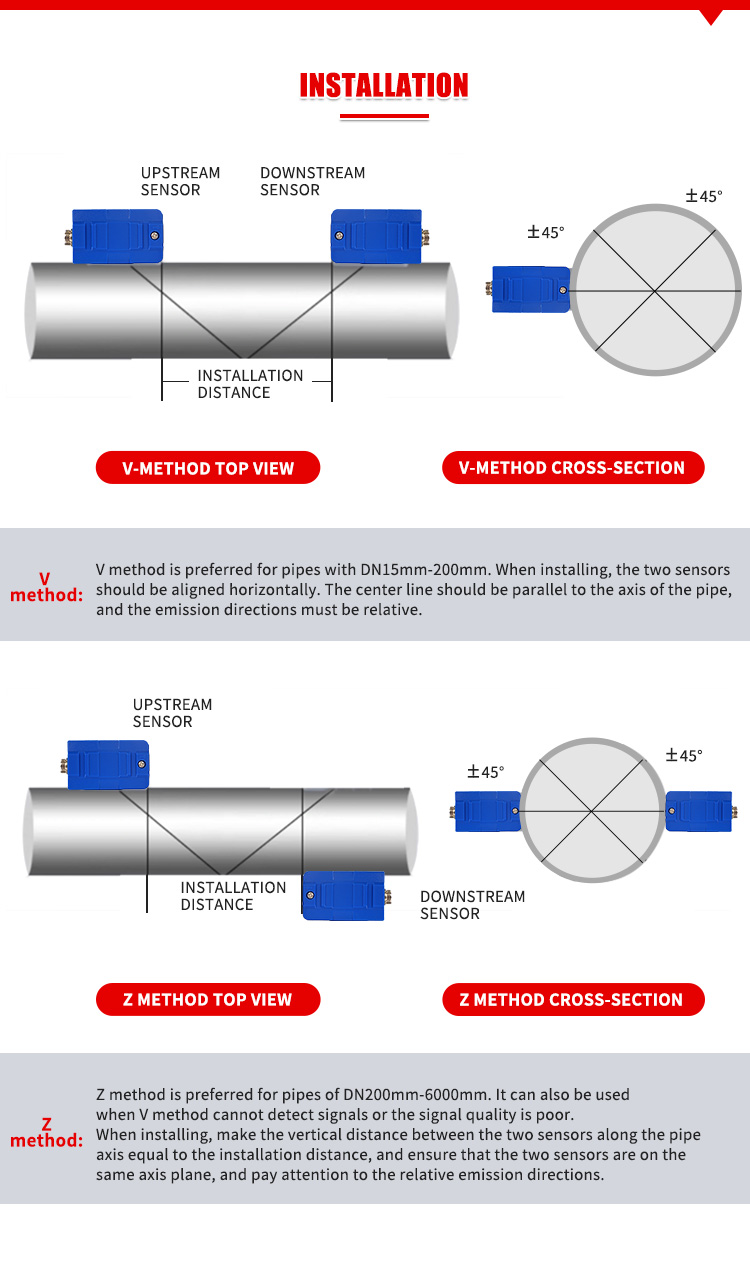

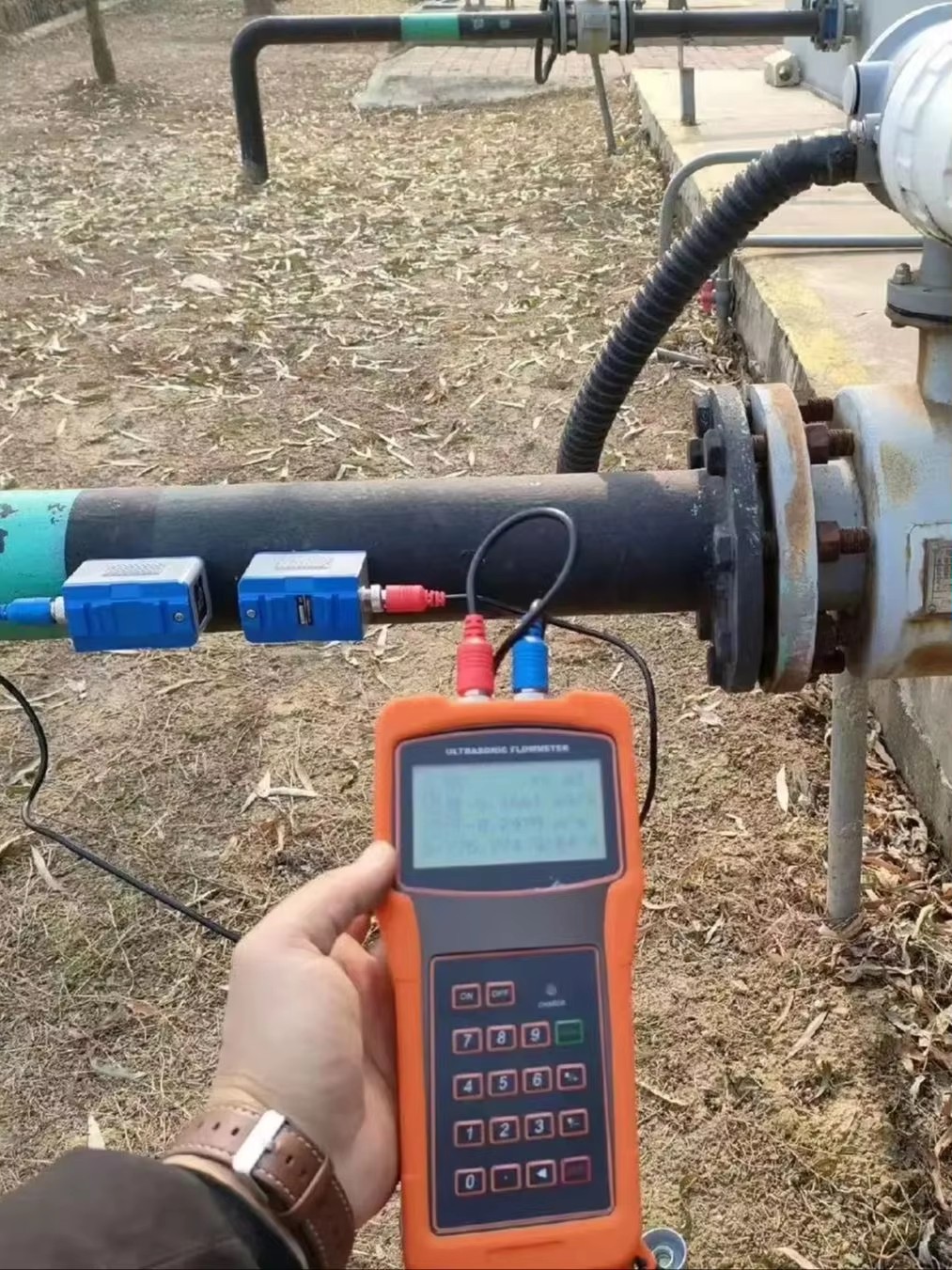

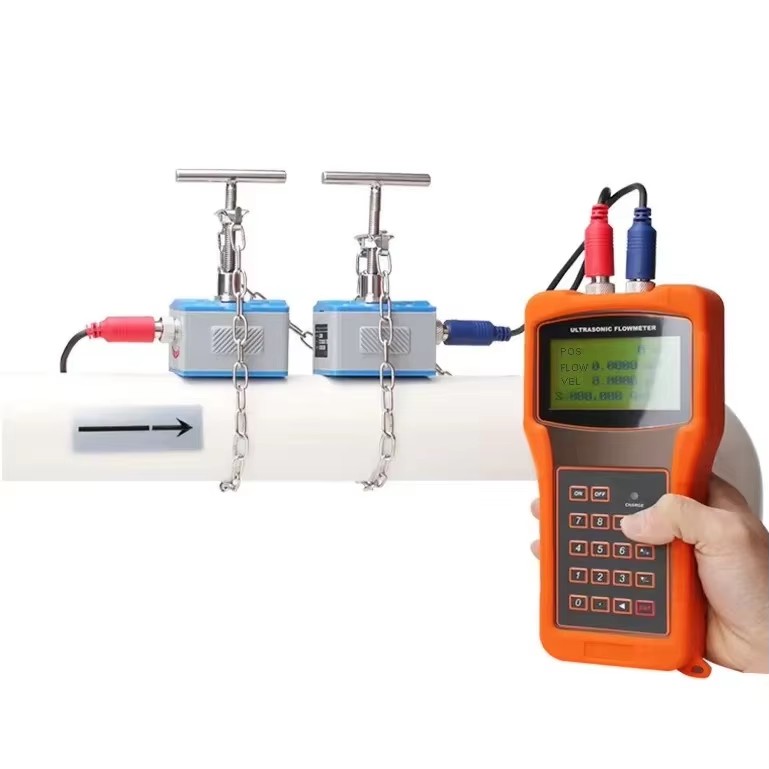

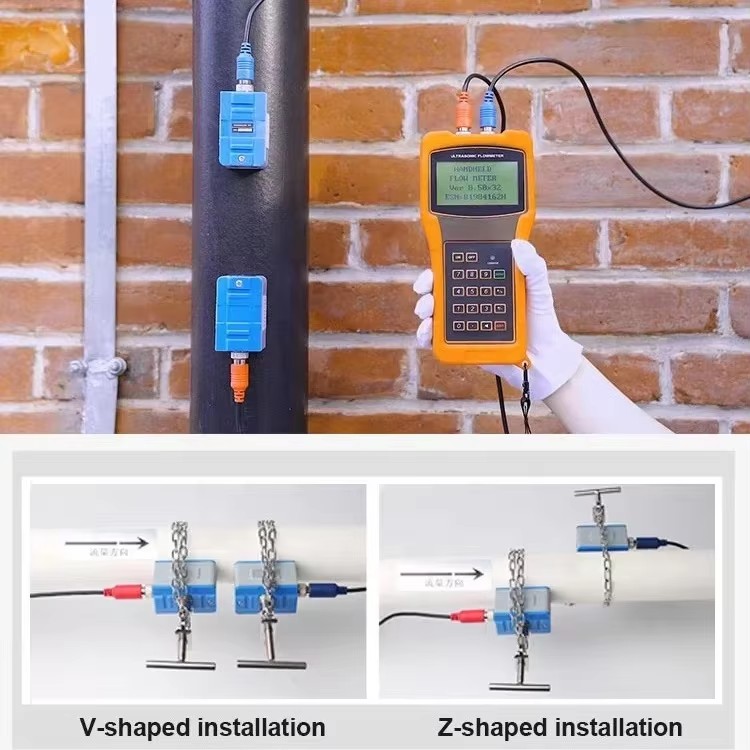

Description: The handheld ultrasonic flowmeter realizes non-contact measurement of liquid flow. The flow measurement can be completed by installing the sensor on the outer wall of the pipe. It has the characteristics of small size, easy to carry and accurate measurement.It is widely used in tap water, heating, water conservancy, metallurgy, chemical industry, machinery, energy and other industries. It can be used for production monitoring, flow calibration, temporary detection, flow inspection, water balance

Download

Basic Parameters

Work Environment -Protection Level	Sensor: IP67
Work Environment -Humidity	Main Machine:≤85% RH，Sensor:IP67
Work Environment -Temperature	Main Machine：-20 ~ 60℃，Sensor：-30~160℃
Accuracy	±1%
Flow Rate Range	0~±10m/s

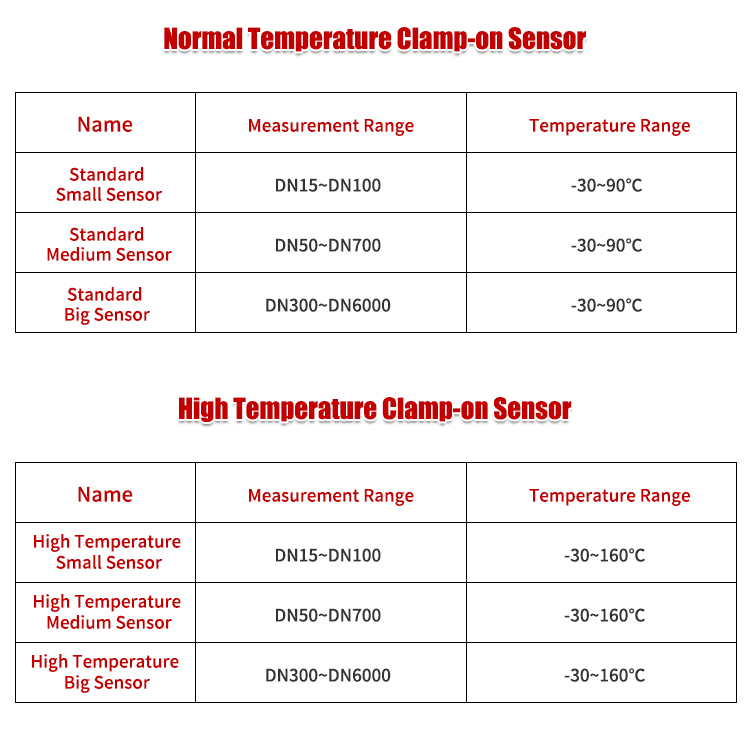

Pipeline Diameter	DN15-DN6000
Fluid Temperature	-30~160℃
Fluid Type	Water, Seawater, Sewage, Acid and Alkali Solution, Alcohol, Beer, Various Oils and Other single uniform liquids that can conduct ultrasonic waves
Pipeline Material	Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Fiberglass and Other dense pipes are allowed to have lining
Singal Output	1 channel OCT pulse output (pulse width 6-1000ms, default 200ms)

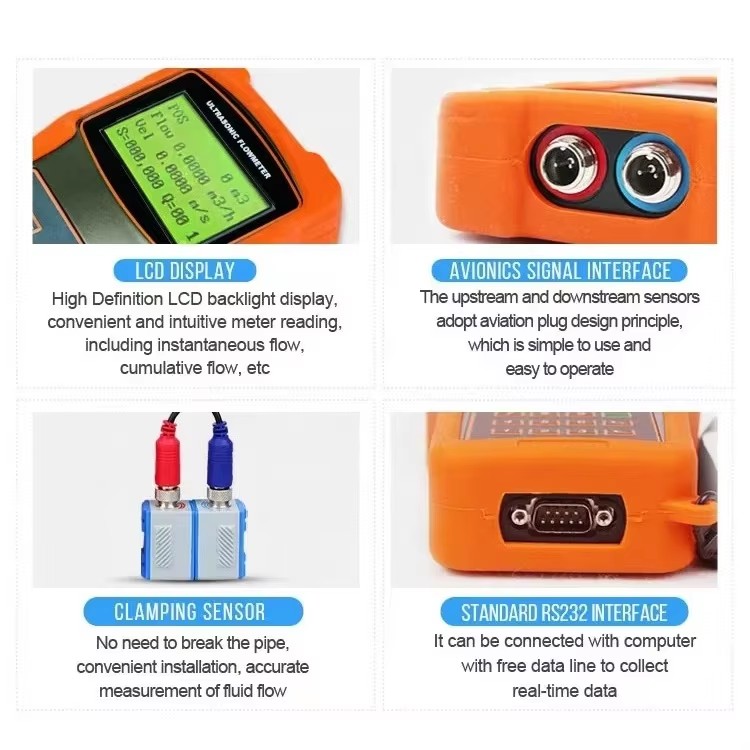

Communication Interface	Isolated RS232 serial port, flow meter can be upgraded via PC

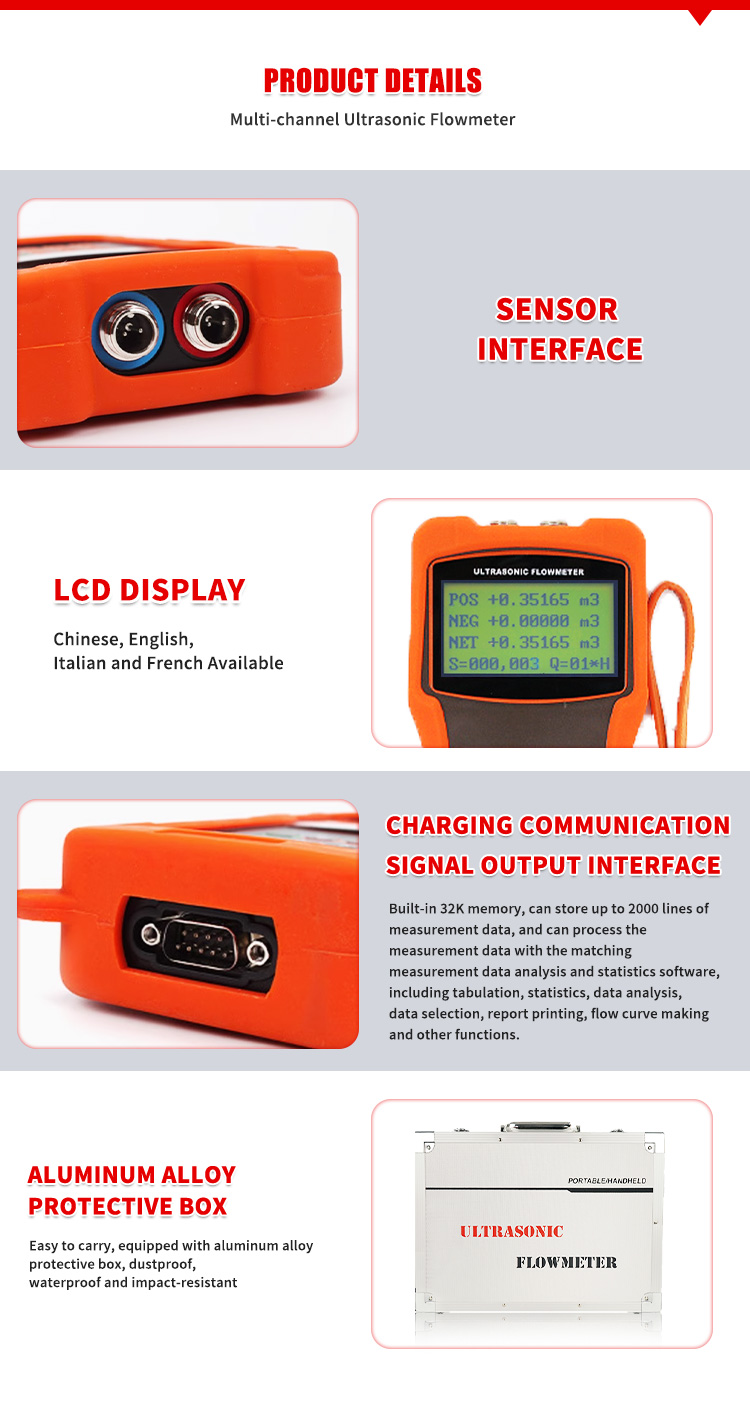

Data Storage	The built-in 32K memory can store up to 2000 lines of measurement data. The matching measurement data analysis and statistical software can be used to process the measurement data, including tabulation, statistics, data analysis, data screening, printing reports, making flow curves and other functions.
Power Supply	3 built-in 1.2V 2000mAH rechargeable Ni-MH batteries, each full charge can work continuously for more than 12 hours. Use AC90~260V power adapter to achieve uninterrupted measurement
