Asmke Micro Metal Tube Rotor Flowmeter Rotameter

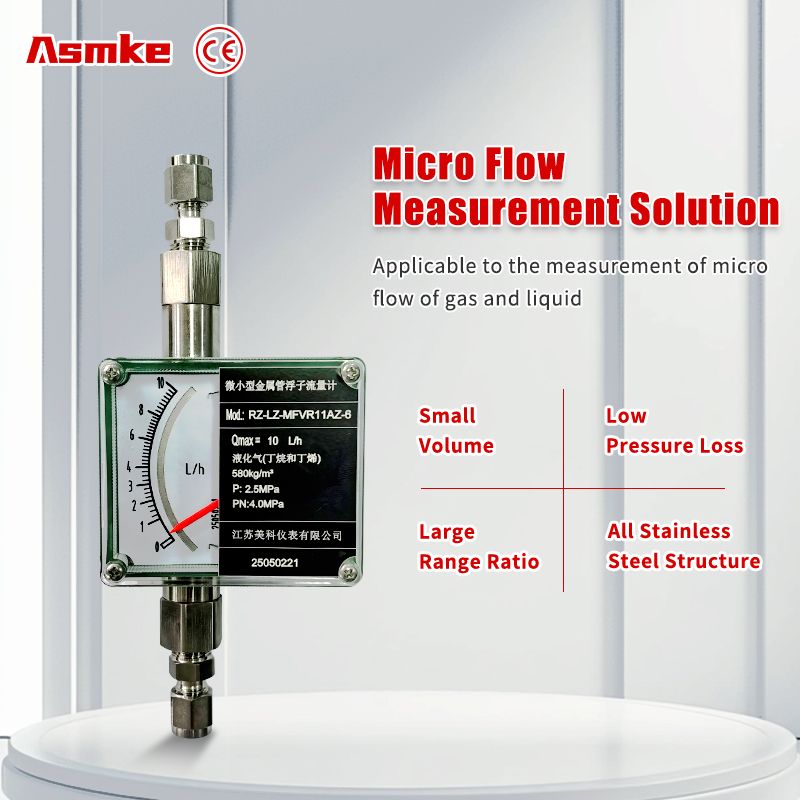

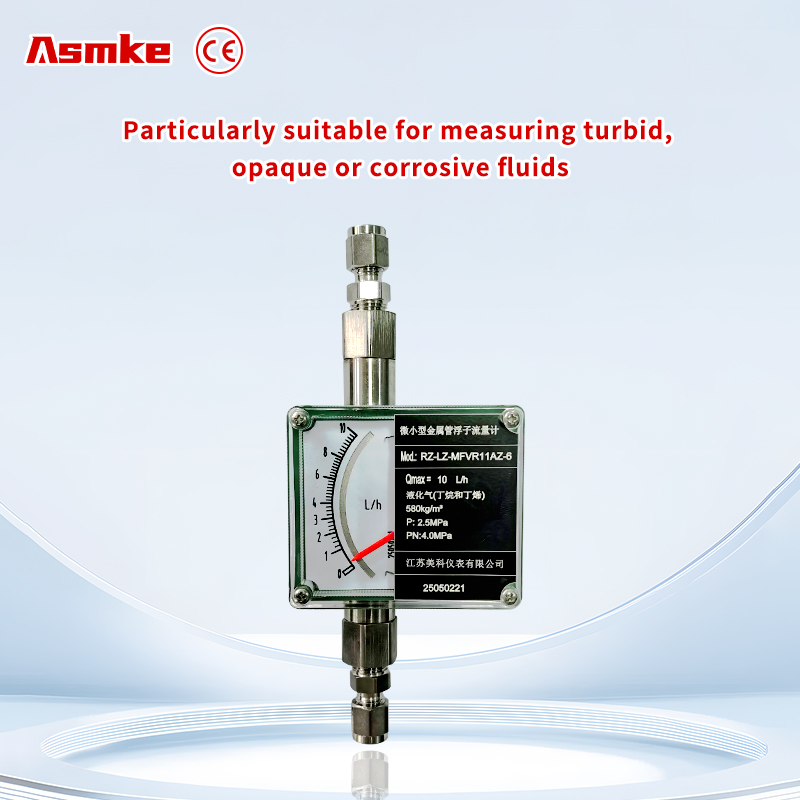

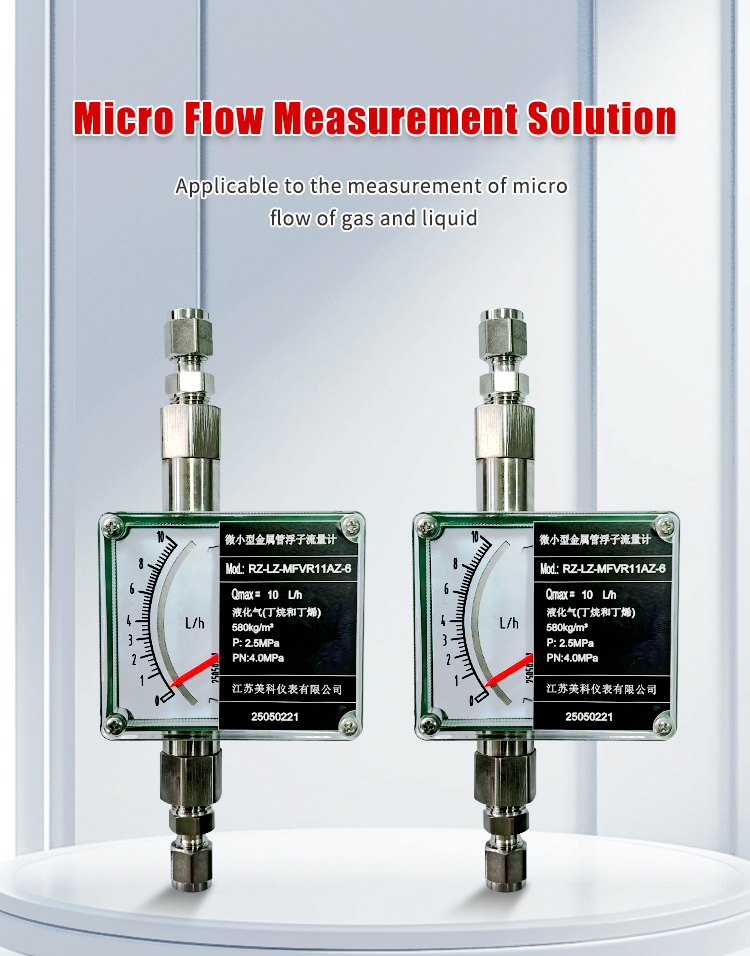

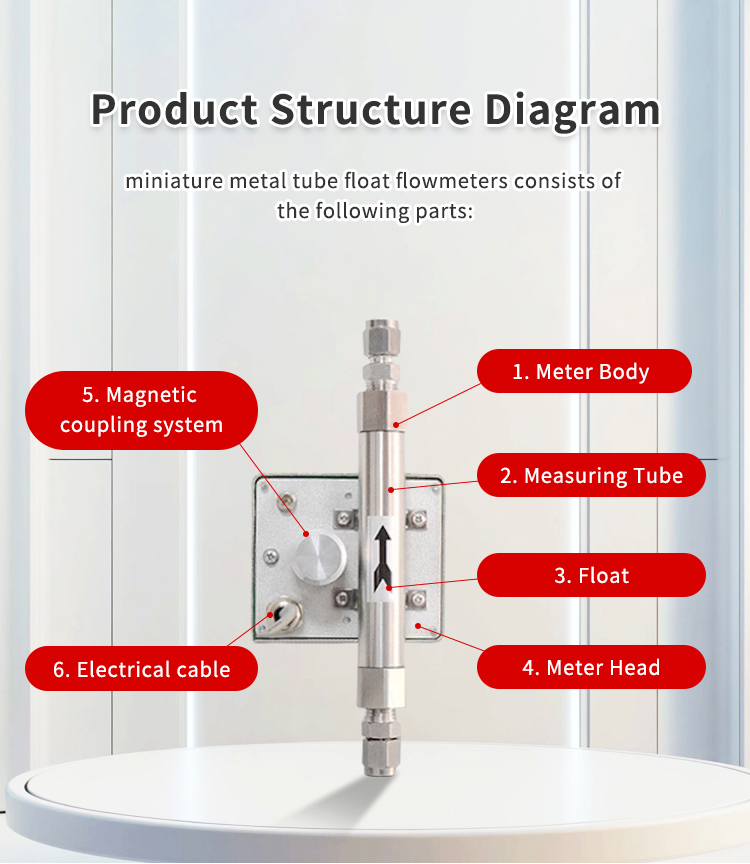

Description: The micro-metal tube float flowmeter is a variable area flowmeter based on float position measurement. The new design makes it possible to measure tiny flows. It is particularly suitable for measuring tiny flows of liquids and gases.It adopts an all-metal structure with small size, small pressure loss, and large range ratio (10:1). It is widely used in various industries in complex and harsh environments, and is used for flow measurement and process control of tiny flows, low flow rates, and var

Download

Basic Parameter

Technical Parameters
Measuring Range	Water (20℃) 1~3000l/h Air (0.1013MPa 20℃) 40～90000 l/h"
Range Ratio	10:1
Accuracy Level	2.5 grade/4.0 grade
Working Pressure	PN16MPa
Medium Temperature	Standard type -40℃～120℃
Ambient Temperature	-40℃~80℃
Medium Viscosity	1/4NPT,3/8"NPT 1/2”NPT≤5mPa.s 3/4”NPT,1”NPT≤250mPa.s"

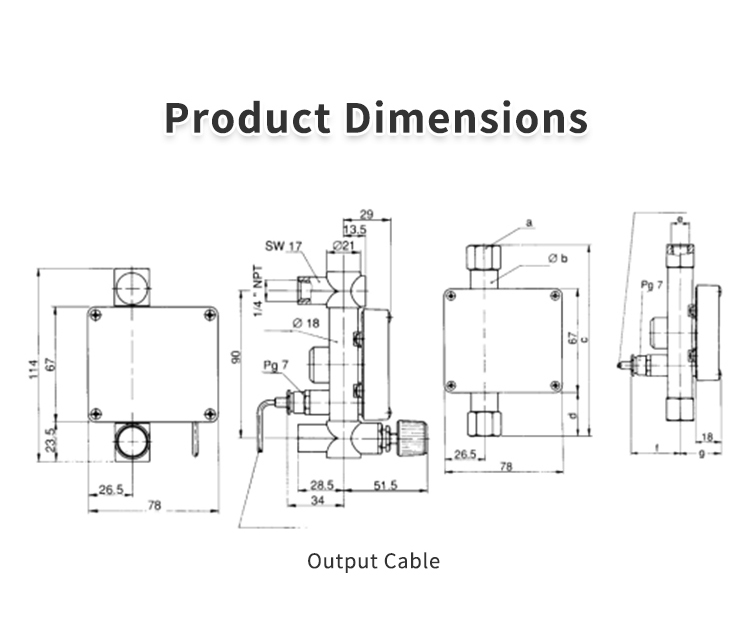

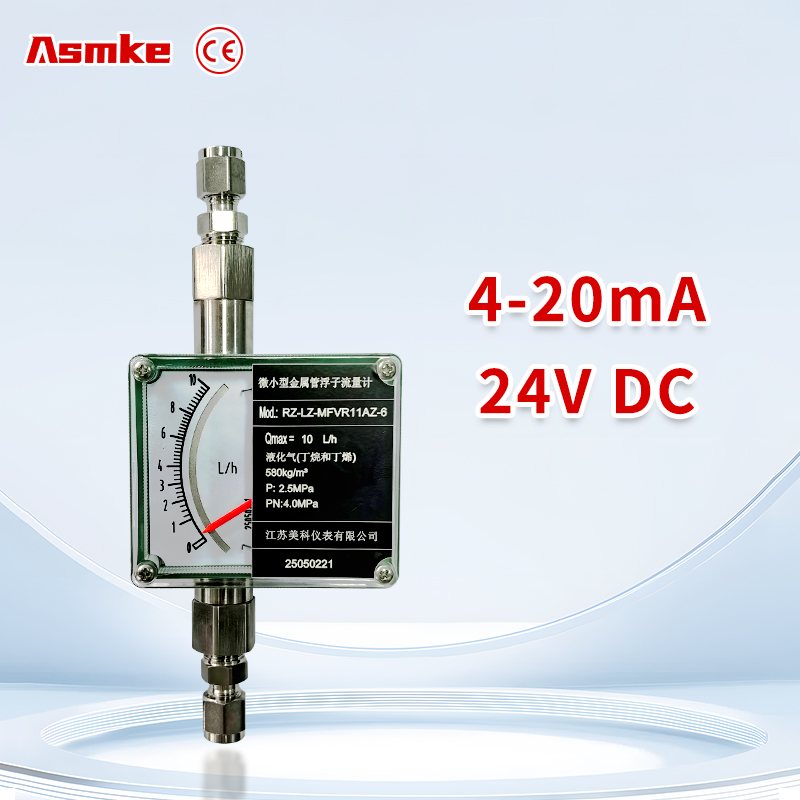

Output	Standard signal: two-wire 4~20mA (24VDC power supply)
Power Supply	24VDC±20%
Connection Method	Side inlet and outlet: 14NPT Bottom inlet and outlet: 14"NPT, 3/8"NPT, 12"NPT, 34"NPT, 1"NPT internal thread"
Electrical Interface	M8×1 or user-provided specifications
Protection Level	IP65
Explosion-proof Mark	Intrinsically safe type: ExiallCT3～6

Flow Range
Maximum Flow
Water 1mPas;1kg/l [l/h]	Air 1013 mbar, 0°C [l/h] QN	Maximum measurable viscosity ImPas](2)	Pressure Drop [mbar]
1	40	4	8
1.6	54	4	8
2.5	100	6	8
4	160	6	8
6	230	18	8
10	350	18	8
16	540	18	8
25	850	18	9
40	1250	18	10.5
60	1900	18	12.5
100	3100	12	17.0
Maximum Flow
Water 1mPas;1kg/l [l/h]	Air 1013 mbar, 0°C [l/h] QN	Maximum measurable viscosity ImPas](2)	Pressure Drop [mbar]
100	3200	8	60
160	5000	8	70
200	6000	8	80
250	8000	8	90
300	9000	8	160
400	12000	8	75
500	15000	8	85
600	18000	8	95
800	24000	8	130
800	24000	3	60
1000	30000	3	62
1600	45000	3	74
2000	60000	3	85
2500	75000	3	105
3000	90000	3	130
