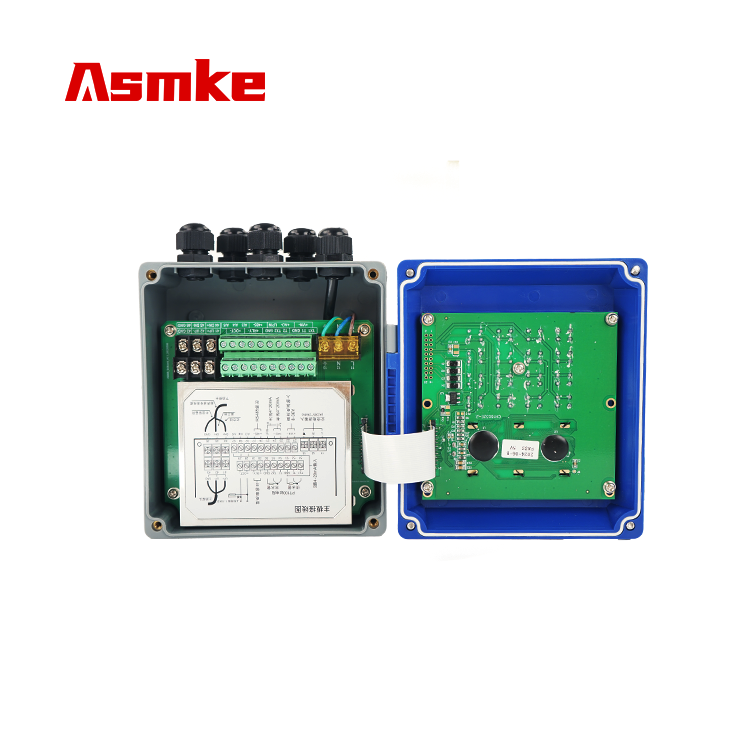

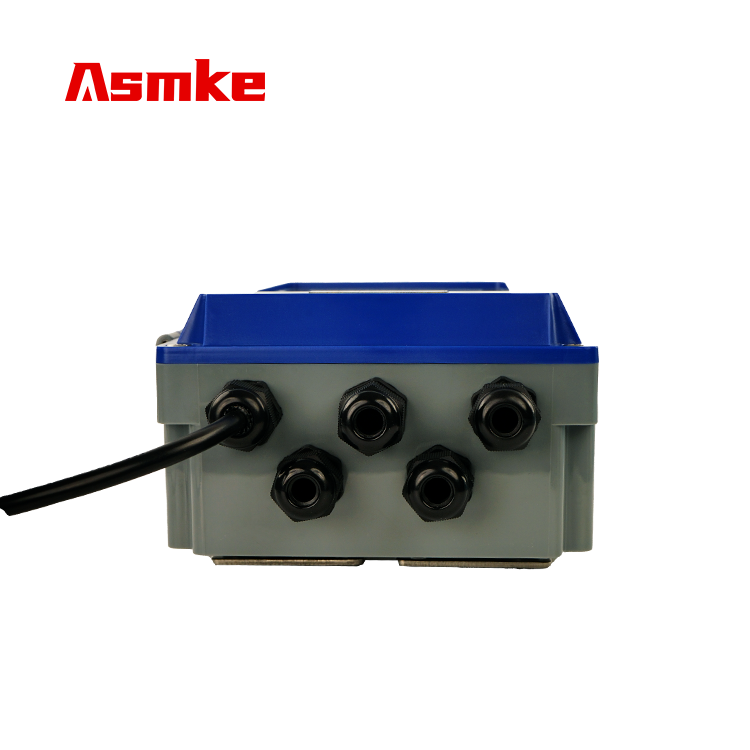

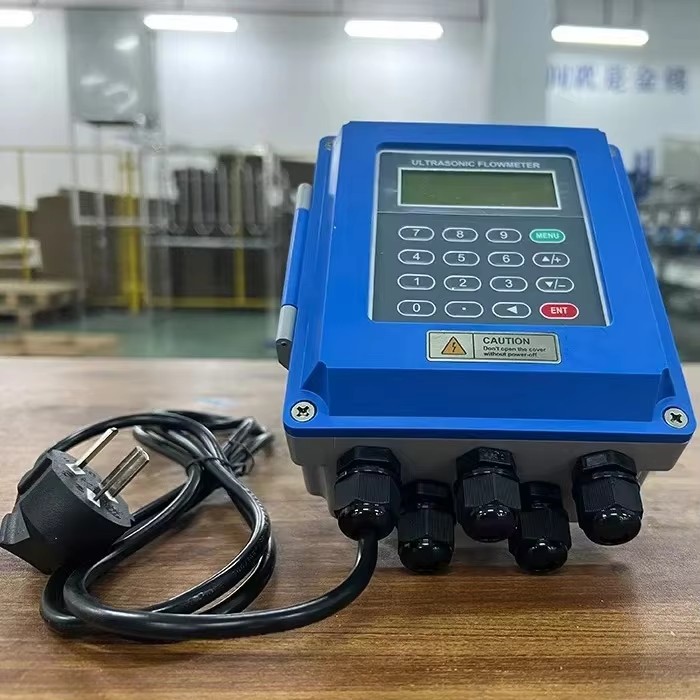

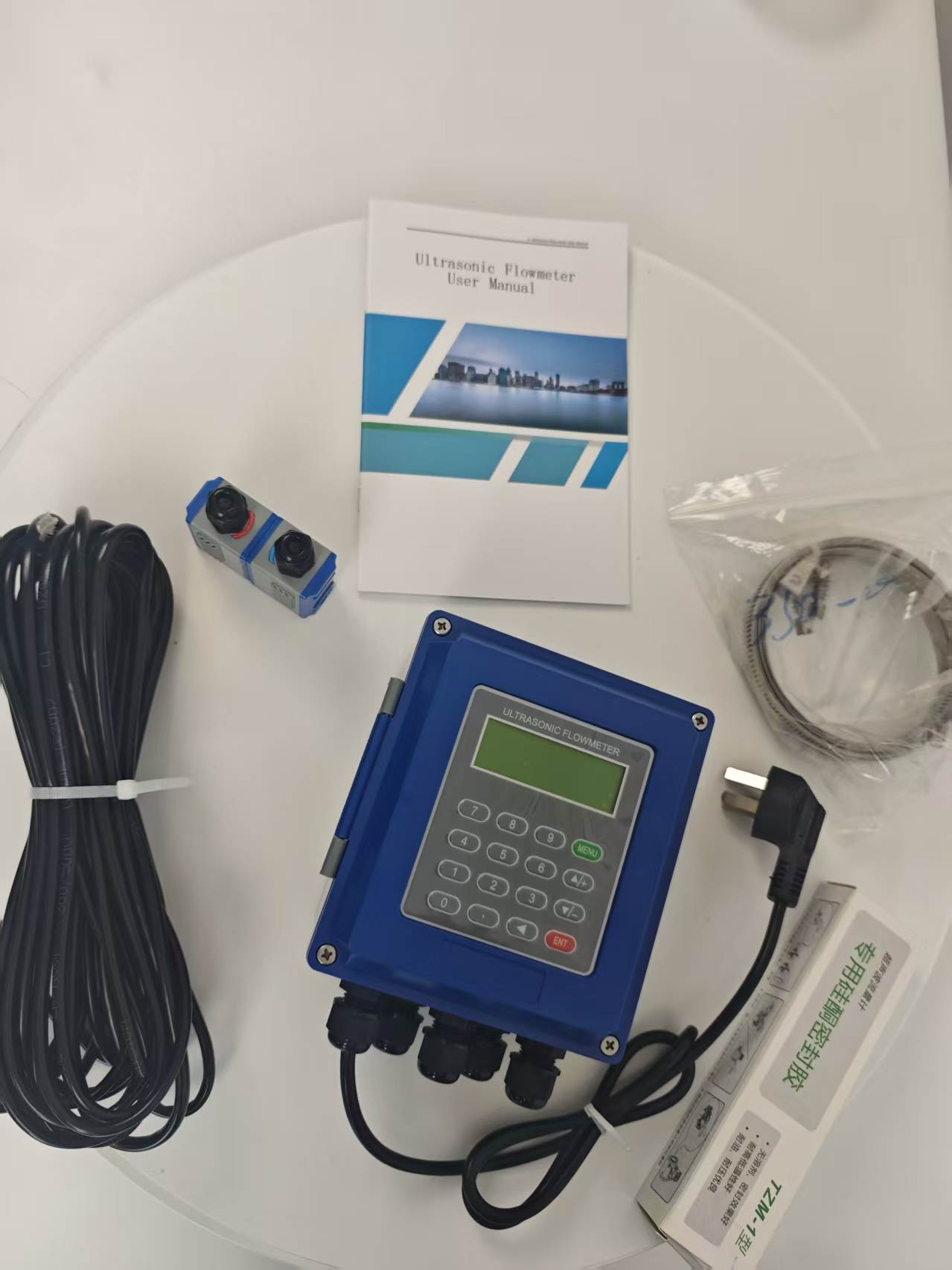

Asmke Classic Wall-mounted Ultrasonic Flowmeter

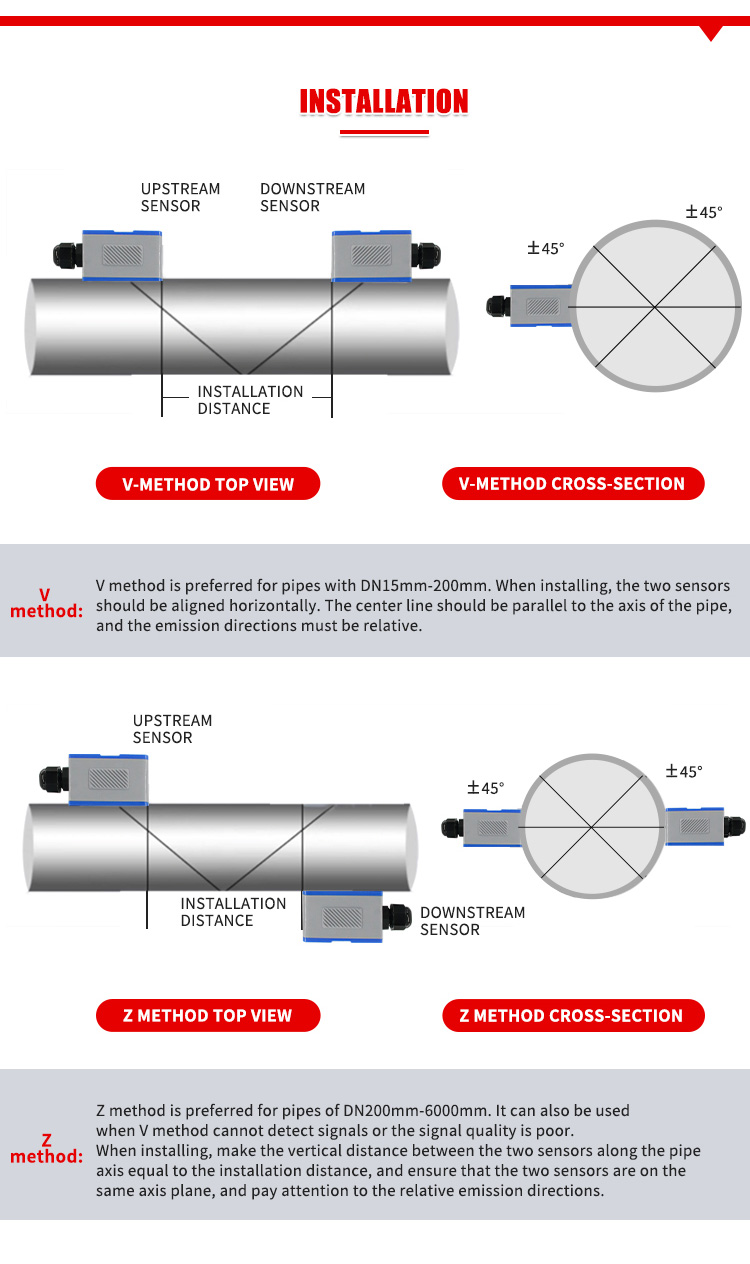

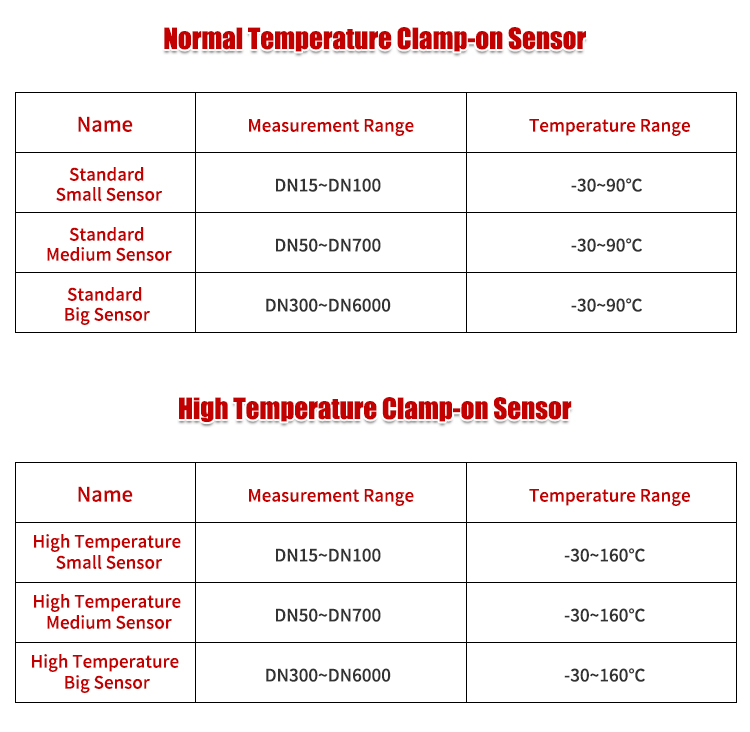

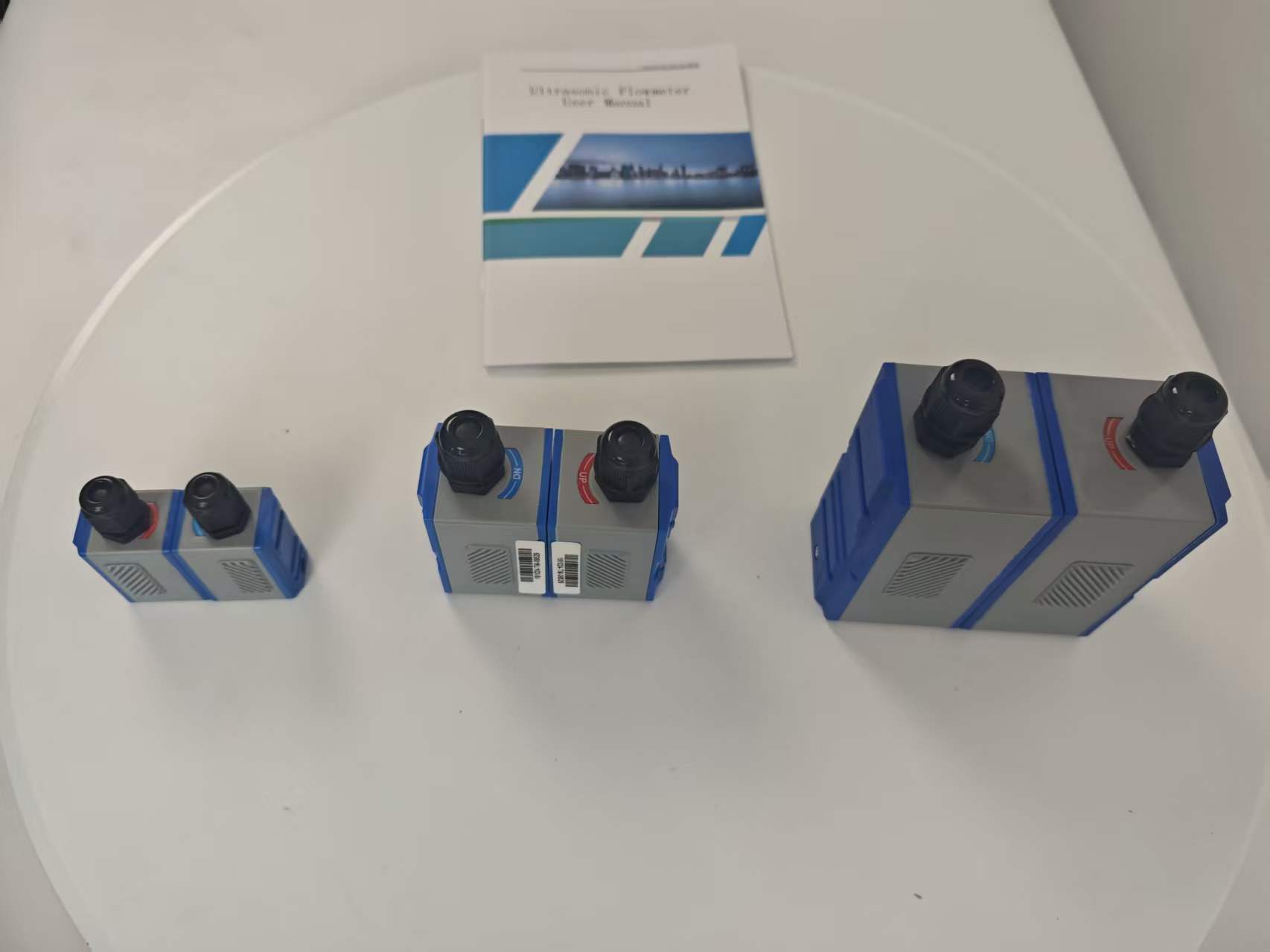

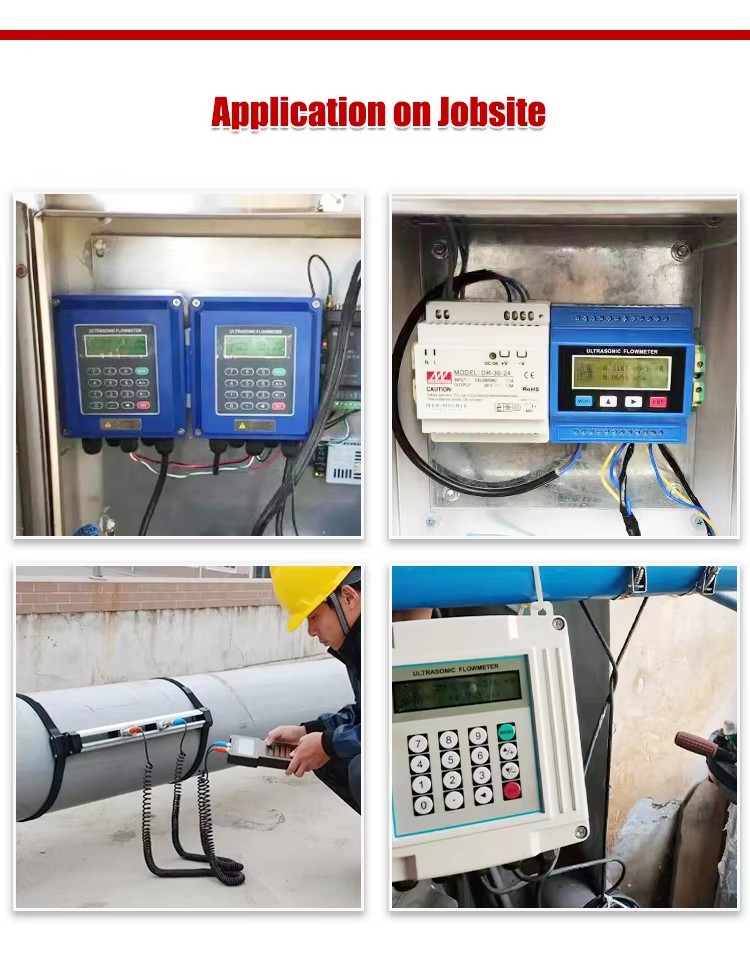

Description: It can be installed without breaking the pipe, and is ready for use. It is simple to install and easy to operate. The main unit can be installed on the wall, instrument box, or distribution box, and the protection level reaches IP67.The external clamp-on sensor is installed on the surface of the pipe. Different sensors are selected, and the applicable caliber is: DN15~DN6000.

Download

Basic Parameters

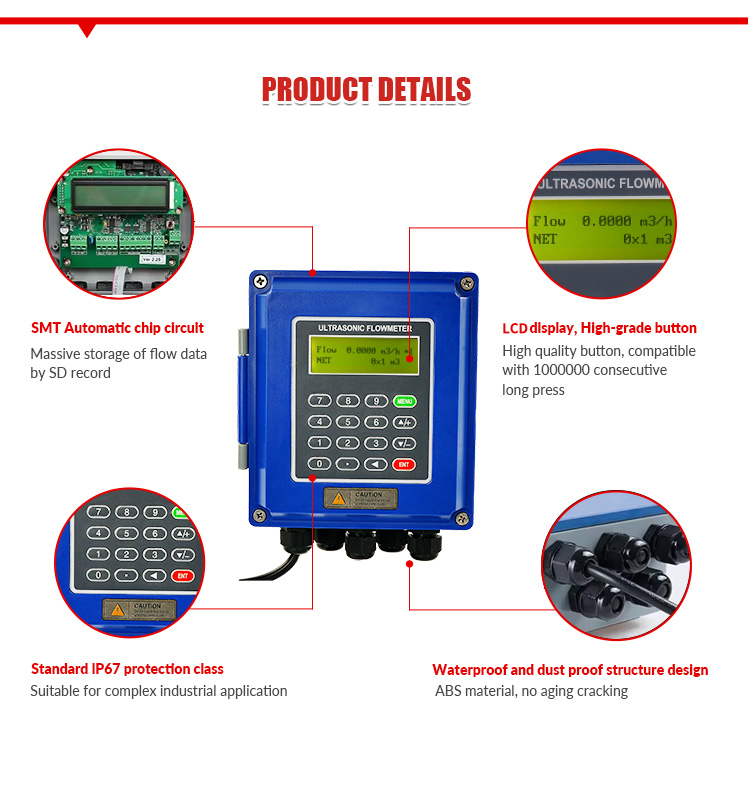

Protection Level	Main Machine: IP67, Sensor: IP68
Humidity	Main Machine: ≤85% RH, Sensor: IP68
Temperature	Main Machine: -20 ~ 60 Celsius Sensor: -30~160 Celsius
Accuracy	±1%
Flow Rate Range	0~±10m/s, Forward and Reverse Measurement
Pipeline Diameter	DN15-DN6000
Fluid Temperature	-30~160 Celsius
Fluid Type	Water, Seawater, Sewage, Acid and Alkali Solution, Alcohol, Beer, Various Oils and Other single uniform liquids that can conduct ultrasonic waves
Pipeline Material	Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Fiberglass and Other dense pipes are allowed to have lining
Singal Output	1 channel 4~20mA current output, impedance 0~1K, accuracy 0.1% 1 channel 0CT pulse output, pulse width 6~1000ms 1 channel relay output
Singal Input	3 channels 4-20mA current input, can be used as a data collector Connect three-stage PT100 platinum resistance to achieve thermal measurement
Communication Interface	Isolated RS485 serial interface, Supporting MODBUS protocol
Data Storage	SD card timed storage of set parameters and test results (optional)
Power Supply	DC8~36V AC85~264V
