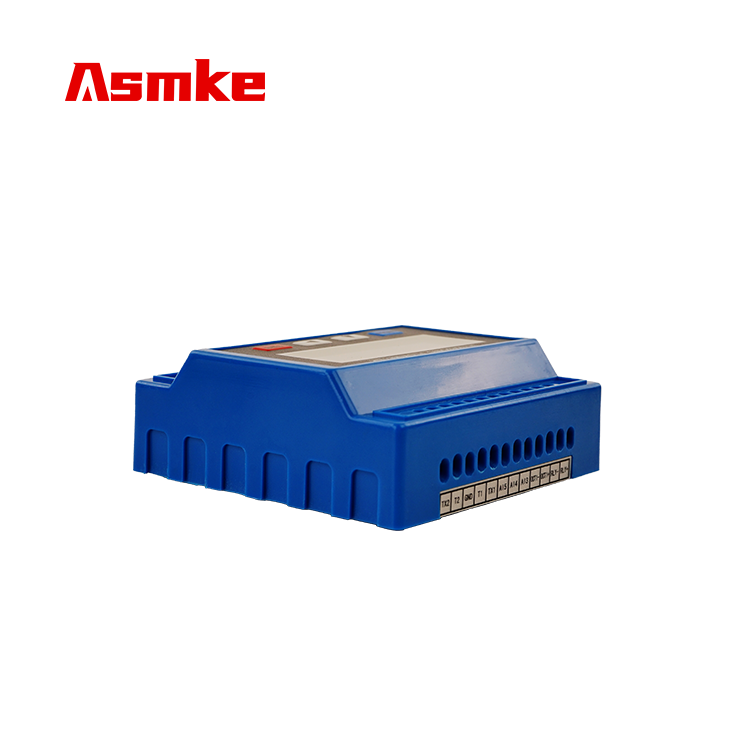

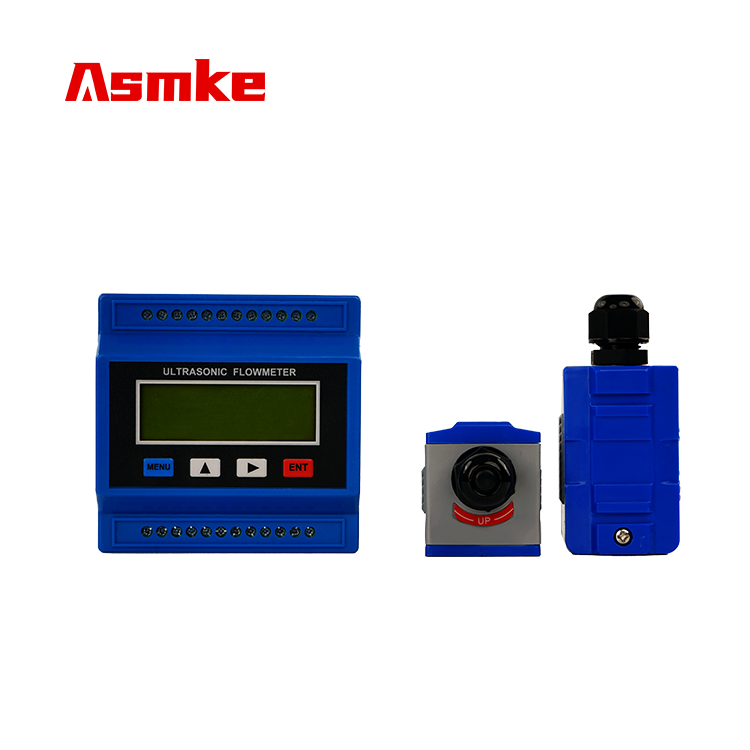

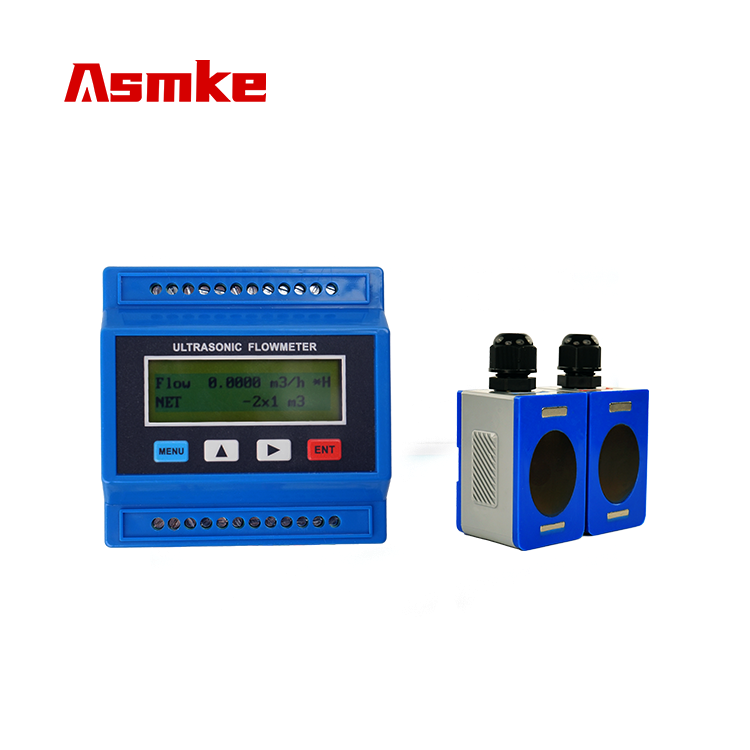

Asmke Modular Ultrasonic Flowmeter

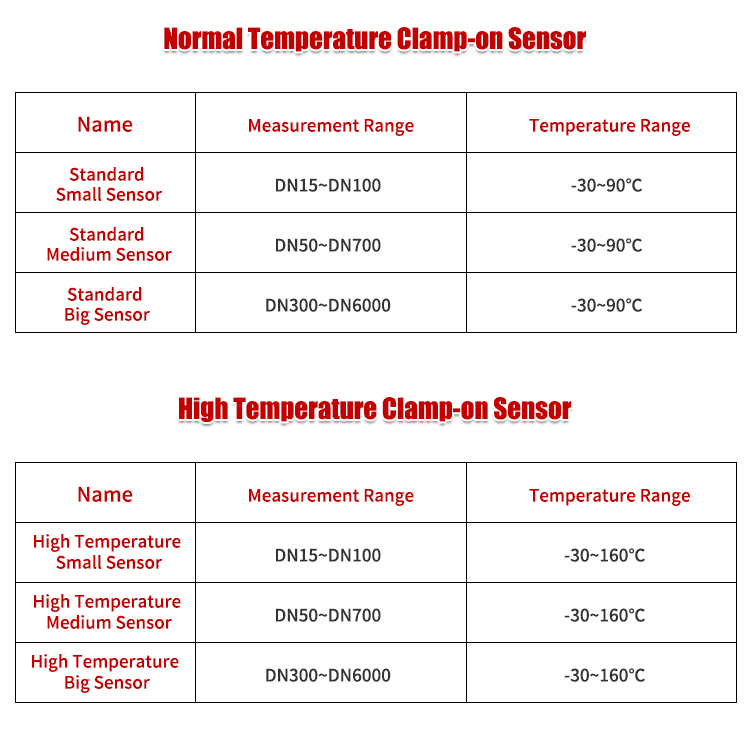

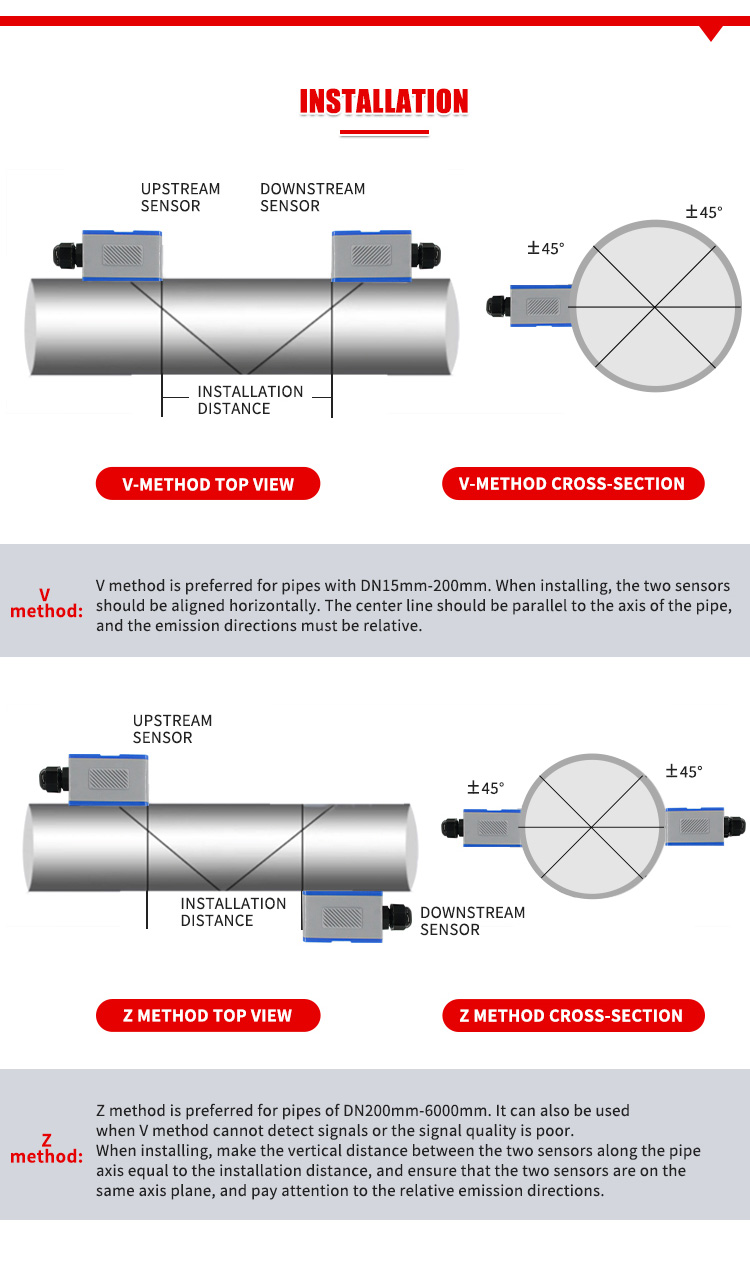

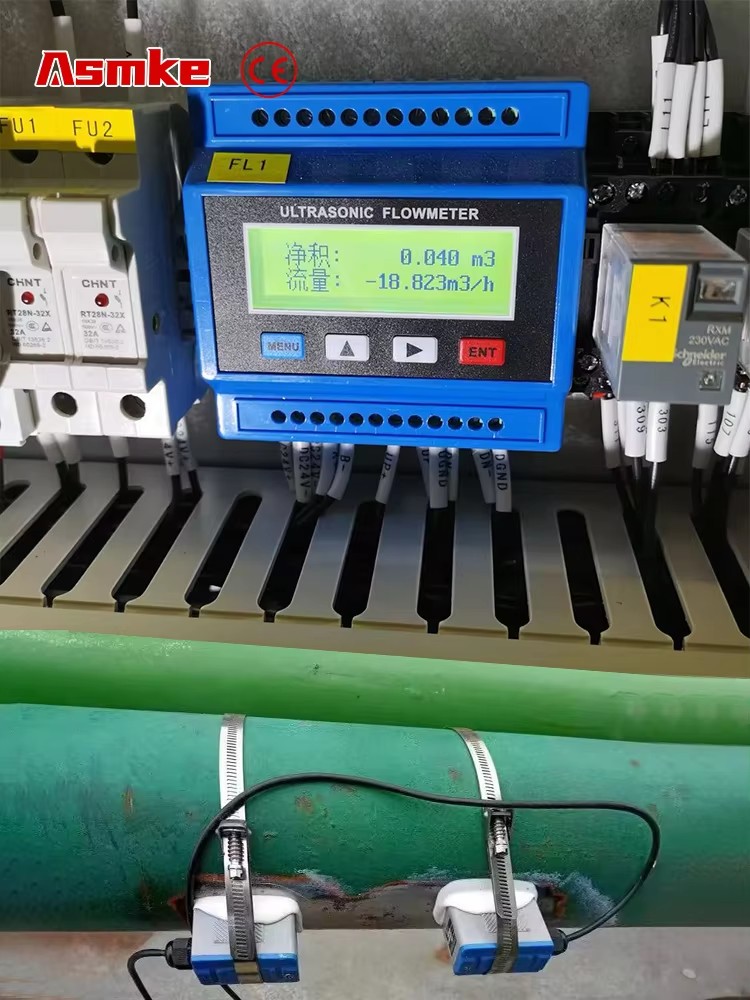

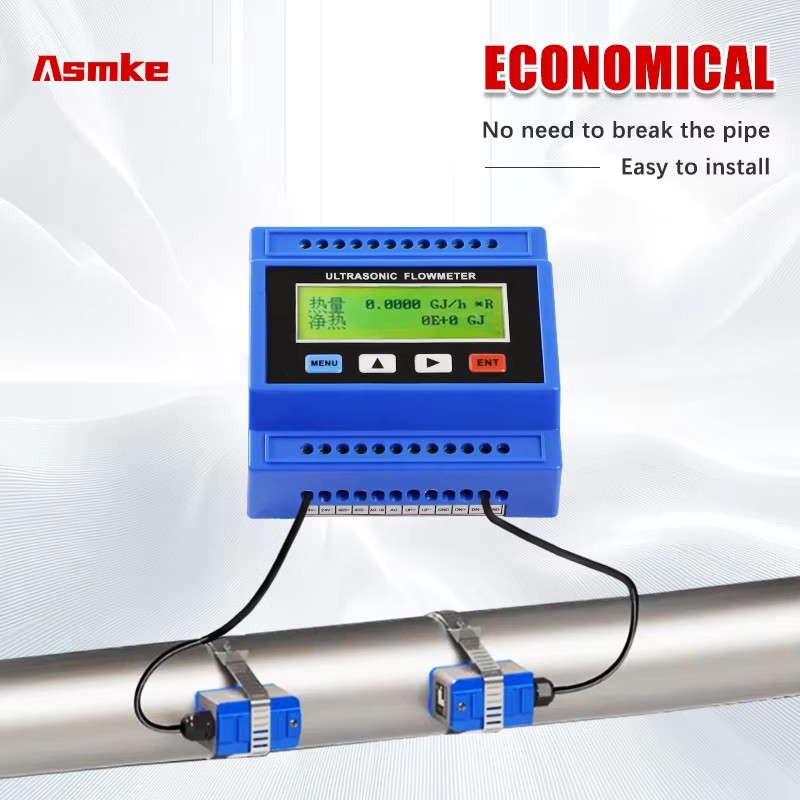

Description: The main unit is small in size, full-featured, low-priced, and is installed on rails. It is suitable for batch use and installation in instrument boxes or distribution cabinets. The clamp-on sensor is installed on the surface of the pipe. Different sensors are selected, and the applicable caliber is: DN15~DN6000.

Download

Basic Parameters

Protection Level	Sensor:IP67
Humidity	Main Machine: ≤80% RH, Sensor: IP67
Temperature	Main Machine: -20 ~ 60 Celsius, Sensor: -30~160 Celsius
Accuracy	±1%
Flow Rate Range	0~±10m/s, Forward and Reverse Measurement
Pipeline Diameter	DN15-DN6000
Fluid Temperature	-30~160 Celsius
Fluid Type	Water, Seawater, Sewage, Acid and Alkali Solution, Alcohol, Beer, Various Oils and Other single uniform liquids that can conduct ultrasonic waves
Pipeline Material	Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Fiberglass and Other dense pipes are allowed to have lining
Singal Output	1 channel 4~20mA current output, impedance 0~1K, accuracy 0.1% 1 channel 0CT pulse output, pulse width 6~1000ms 1 channel relay output
Singal Input	3 channels 4-20mA current input, can be used as a data collector Connect three-stage PT100 platinum resistance to achieve thermal measurement
Communication Interface	Isolated RS485 serial interface, Supporting MODBUS protocol
Data Storage	/
Power Supply	DC8~36V
