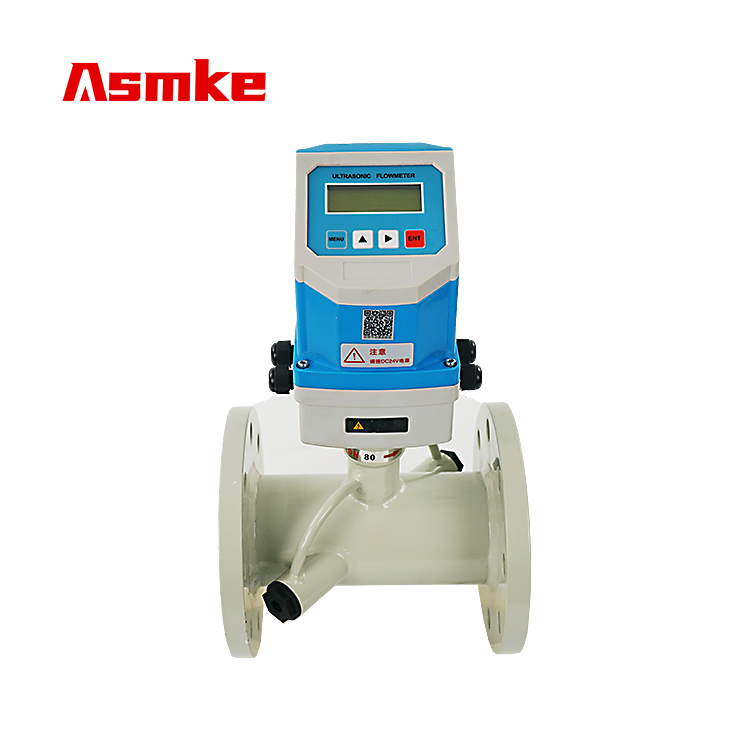

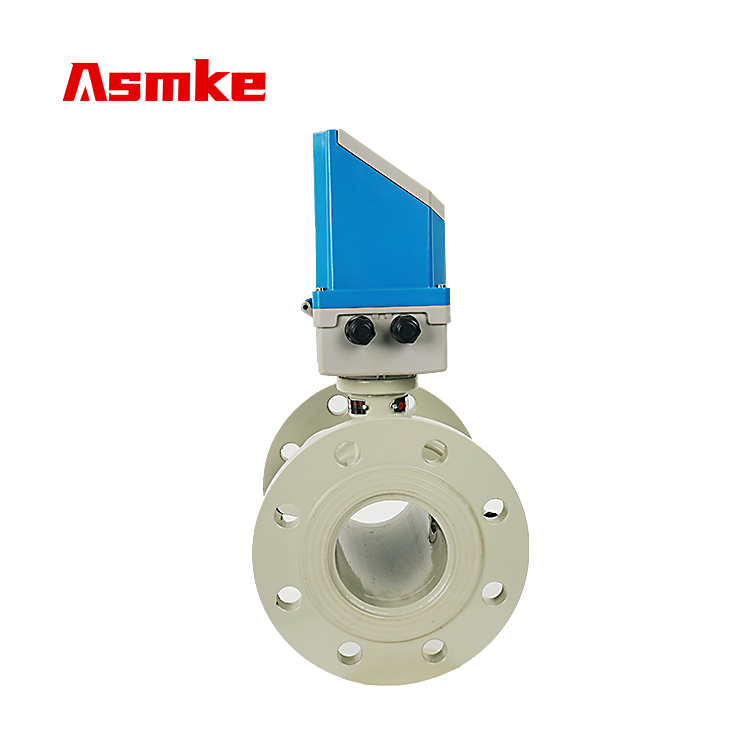

Asmke Pipe Section Ultrasonic Flowmeter

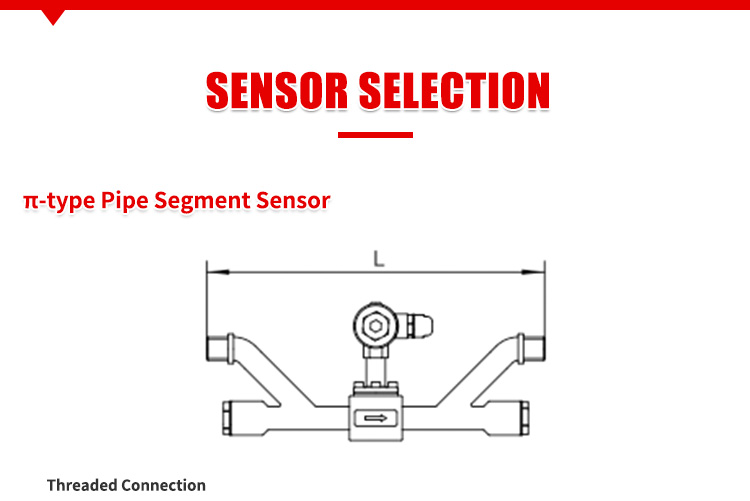

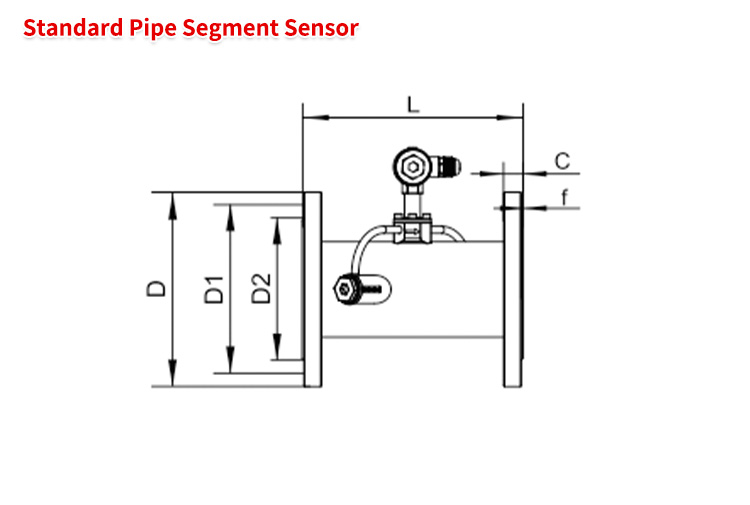

Description: The pipe section ultrasonic flowmeter consists of a main unit and a pipe section sensor. DN15~DN32 matches a π-type pipe section sensor, DN40 and above use a standard pipe section sensor. The pipe section ultrasonic flowmeter has the advantages of simple installation, low starting flow,high measurment accuracy and no pressure loss

Download

Basic Parameters

Protection Level	Main Machine: IP67 Sensor: IP68
Humidity	Main Machine:≤85% RH Sensor: IP68
Temperature	Main Machine: -20 ~ 60℃ Sensor: -30~160℃
Accuracy	±1%
Flow Rate Range	0~±10m/s, Forward and Reverse Measurement
Pipeline Diameter	DN15-DN6000
Fluid Temperature	-30~160 Celsius
Fluid Type	Water, Seawater, Sewage, Acid and Alkali Solution, Alcohol, Beer, Various Oils and Other single uniform liquids that can conduct ultrasonic waves
Pipeline Material	Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Fiberglass and Other dense pipes are allowed to have lining
Singal Output	1 channel 4~20mA current output, impedance 0~1K, accuracy 0.1% 1 channel 0CT pulse output, pulse width 6~1000ms 1 channel relay output
Singal Input	3 channels 4-20mA current input, can be used as a data collector Connect three-stage PT100 platinum resistance to achieve thermal measurement
Communication Interface	Isolated RS485 serial interface, Supporting MODBUS protocol
Data Storage	SD card timed storage of set parameters and test results (optional)
Power Supply	DC8~36V AC85~264V
